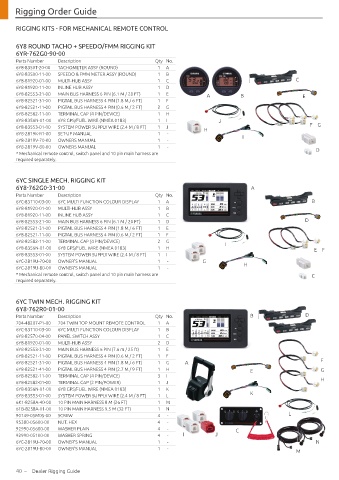

Rigging Order Guide

RIGGING KITS - FOR MECHANICAL REMOTE CONTROL

6Y8 ROUND TACHO + SPEEDO/FMM RIGGING KIT
6YR-762G0-90-00
Parts Number Description Qty No.
6Y8-8350T-20-00 TACHOMETER ASSY (ROUND) 1 A
6Y8-83500-11-00 SPEEDO & FMM METER ASSY (ROUND) 1 B
6Y8-81920-01-00 MULTI-HUB ASSY 1 C C
6Y8-81920-11-00 INLINE HUB ASSY 1 D
6Y8-82553-21-00 MAIN BUS HARNESS 6 PIN (6.1 M / 20 FT) 1 E A B E
6Y8-82521-31-00 PIGTAIL BUS HARNESS 4 PIN (1.8 M / 6 FT) 1 F
6Y8-82521-11-00 PIGTAIL BUS HARNESS 4 PIN (0.6 M / 2 FT) 2 G
6Y8-82582-11-00 TERMINAL CAP (4 PIN/DEVICE) 1 H
6Y8-8356N-01-00 6Y8 GPS/FUEL WIRE (NMEA 0183) 1 I J
6Y8-83553-01-00 SYSTEM POWER SUPPLY WIRE (2.4 M / 8 FT) 1 J H F G
6Y8-2819K-R1-00 SET-UP MANUAL 1 - I
6Y8-2819V-70-00 OWNERS MANUAL 1 -
6Y8-2819V-80-00 OWNERS MANUAL 1 - D
* Mechanical remote control, switch panel and 10 pin main harness are
required separately.

6YC SINGLE MECH. RIGGING KIT
6Y8-762G0-31-00 A
Parts Number Description Qty No.
6YC-83710-03-00 6YC MULTI FUNCTION COLOUR DISPLAY 1 A B
6Y8-81920-01-00 MULTI-HUB ASSY 1 B
6Y8-81920-11-00 INLINE HUB ASSY 1 C
6Y8-82553-21-00 MAIN BUS HARNESS 6 PIN (6.1 M / 20 FT) 1 D D
6Y8-82521-31-00 PIGTAIL BUS HARNESS 4 PIN (1.8 M / 6 FT) 1 E
6Y8-82521-11-00 PIGTAIL BUS HARNESS 4 PIN (0.6 M / 2 FT) 1 F
6Y8-82582-11-00 TERMINAL CAP (4 PIN/DEVICE) 2 G I
6Y8-8356N-01-00 6Y8 GPS/FUEL WIRE (NMEA 0183) 1 H E F
6Y8-83553-01-00 SYSTEM POWER SUPPLY WIRE (2.4 M / 8 FT) 1 I
6YC-2819U-70-00 OWNER'S MANUAL 1 - G H
6YC-2819U-80-00 OWNER'S MANUAL 1 -
* Mechanical remote control, switch panel and 10 pin main harness are C
required separately.

6YC TWIN MECH. RIGGING KIT
6Y8-762R0-01-00
Parts Number Description Qty No. B D
704-48207-P1-00 704 TWIN TOP MOUNT REMOTE CONTROL 1 A
6YC-83710-03-00 6YC MULTI FUNCTION COLOUR DISPLAY 1 B
6Y8-82570-04-00 PANEL SWITCH ASSY 1 C
6Y8-81920-01-00 MULTI-HUB ASSY 2 D
6Y8-82553-31-00 MAIN BUS HARNESS 6 PIN (7.6 m / 25 ft) 1 E
6Y8-82521-11-00 PIGTAIL BUS HARNESS 4 PIN (0.6 M / 2 FT) 1 F
6Y8-82521-31-00 PIGTAIL BUS HARNESS 4 PIN (1.8 M / 6 FT) 1 G A F
6Y8-82521-41-00 PIGTAIL BUS HARNESS 4 PIN (2.7 M / 9 FT) 1 H E G
6Y8-82582-11-00 TERMINAL CAP (4 PIN/DEVICE) 3 I H
6Y8-82582-01-00 TERMINAL CAP (2 PIN/POWER) 1 J
6Y8-8356N-01-00 6Y8 GPS/FUEL WIRE (NMEA 0183) 1 K
6Y8-83553-01-00 SYSTEM POWER SUPPLY WIRE (2.4 M / 8 FT) 1 L K
6K1-8258A-40-00 10 PIN MAIN HARNESS 8 M (26 FT) 1 M
61B-8258A-01-00 10 PIN MAIN HARNESS 9.5 M (32 FT) 1 N
90149-05M05-00 SCREW 4 - L
95380-05600-00 NUT. HEX 4 -
92990-05600-00 WASHER PLAIN 4 - C
92990-05100-00 WASHER SPRING 4 - I J
6YC-2819U-70-00 OWNER'S MANUAL 1 - N
6YC-2819U-80-00 OWNER'S MANUAL 1 -
M
