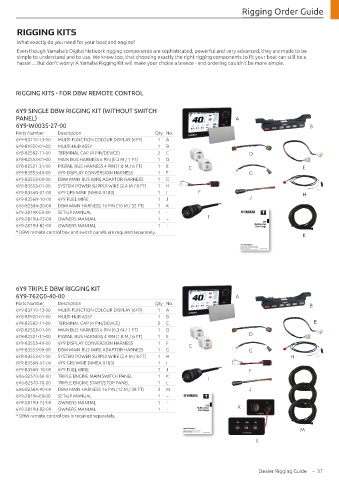

Rigging Order Guide

RIGGING KITS

What exactly do you need for your boat and engine?
Even though Yamaha’s Digital Network rigging components are sophisticated, powerful and very advanced, they are made to be
simple to understand and to use. We know too, that choosing exactly the right rigging components to fit your boat can still be a
hassle ... But don’t worry! A Yamaha Rigging Kit will make your choice a breeze - and ordering couldn’t be more simple.

RIGGING KITS - FOR DBW REMOTE CONTROL

6Y9 SINGLE DBW RIGGING KIT (WITHOUT SWITCH
PANEL) A
6Y9-W0035-27-00 B
Parts Number Description Qty No.
6Y9-83710-13-00 MULTI-FUNCTION COLOUR DISPLAY (6Y9) 1 A
6Y8-81920-01-00 MULTI-HUB ASSY 1 B
6Y8-82582-11-00 TERMINAL CAP (4 PIN/DEVICE) 2 C D
6Y8-82553-01-00 MAIN BUS HARNESS 6 PIN (0.3 M / 1 FT) 1 D
6Y8-82521-31-00 PIGTAIL BUS HARNESS 4 PIN (1.8 M / 6 FT) 1 E C E
6Y9-83553-40-00 6Y9 DISPLAY CONVERSION HARNESS 1 F G
6Y9-83553-00-00 DBW MAIN BUS WIRE ADAPTOR HARNESS 1 G
6Y8-83553-01-00 SYSTEM POWER SUPPLY WIRE (2.4 M / 8 FT) 1 H
6Y9-8356N-01-00 6Y9 GPS WIRE (NMEA 0183) 1 I F H
6Y9-8356N-10-00 6Y9 FUEL WIRE 1 J J
6X6-8258A-30-00 DBW MAIN HARNESS 16 PIN (10 M / 32 FT) 1 K
6Y9-2819K-E0-00 SET-UP MANUAL 1 -
6Y9-2819U-72-00 OWNERS MANUAL 1 - I
6Y9-2819U-82-00 OWNERS MANUAL 1 -
* DBW remote control box and switch panels are required separately.
K

6Y9 TRIPLE DBW RIGGING KIT
6Y9-762G0-40-00 A
Parts Number Description Qty No. B
6Y9-83710-13-00 MULTI-FUNCTION COLOUR DISPLAY (6Y9) 1 A
6Y8-81920-01-00 MULTI-HUB ASSY 1 B
6Y8-82582-11-00 TERMINAL CAP (4 PIN/DEVICE) 2 C E
6Y8-82553-01-00 MAIN BUS HARNESS 6 PIN (0.3 M / 1 FT) 1 D
6Y8-82521-31-00 PIGTAIL BUS HARNESS 4 PIN (1.8 M / 6 FT) 1 E D
6Y9-83553-40-00 6Y9 DISPLAY CONVERSION HARNESS 1 F C
6Y9-83553-00-00 DBW MAIN BUS WIRE ADAPTOR HARNESS 1 G G
6Y8-83553-01-00 SYSTEM POWER SUPPLY WIRE (2.4 M / 8 FT) 1 H H
6Y9-8356N-01-00 6Y9 GPS WIRE (NMEA 0183) 1 I
6Y9-8356N-10-00 6Y9 FUEL WIRE 1 J F
6X6-82570-50-00 TRIPLE ENGINE MAIN SWITCH PANEL 1 K I
6X6-82570-70-00 TRIPLE ENGINE START/STOP PANEL 1 L
6X6-8258A-40-00 DBW MAIN HARNESS 16 PIN (12 M / 38 FT) 3 M J
6Y9-2819K-E0-00 SET-UP MANUAL 1 -
6Y9-2819U-72-00 OWNERS MANUAL 1 -
6Y9-2819U-82-00 OWNERS MANUAL 1 - K
* DBW remote control box is required separately.

M
L
