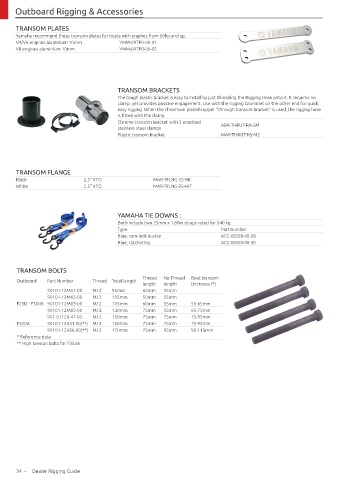

Page 36 - Yamaha Marine Zubehör Katalog 2020

Outboard Rigging & Accessories

TRANSOM PLATES
Yamaha recommend these transom plates for boats with engines from 60hp and up.
V4/V6 engines aluminium 10mm YMM-09TP0-00-01
V8 engines aluminium 10mm YMM-09TP0-00-02

TRANSOM BRACKETS
The tough plastic bracket is easy to install by just threading the Rigging Hose onto it. It requires no
clamp, yet provides positive engagement. Use with the rigging Grommet on the other end for quick,
easy rigging. When the chromium plated copper ''through transom bracket'' is used, the rigging hose
is fitted with the clamp.
Chrome transom bracket with 2 anodised ABA-THRUT-RA-SM
stainless steel clamps
Plastic transom bracket MAR-THRUT-RS-M2

TRANSOM FLANGE
Black 2,5" XTO MAR-TFLNG-25-BK
White 2,5" XTO MAR-TFLNG-25-WT

YAMAHA TIE DOWNS :
Both include two 25mm x 1.80m straps rated for 540 kg.
Type Part number
Blue, cam-lock buckle ACC-0SS58-40-28
Blue, ratcheting ACC-0SS58-40-30

TRANSOM BOLTS
Thread No Thread Boat transom
Outboard Part Number Thread Total length
length length thickness (*)
90101-12M51-00 M12 95mm 60mm 35mm
90101-12M65-00 M12 105mm 50mm 55mm
F25D - F300B 90101-12M03-00 M12 115mm 60mm 55mm 55-65mm
90101-12M05-00 M12 130mm 75mm 55mm 65-75mm
901-01120-47-00 M12 150mm 75mm 75mm 75-95mm
F350A 90101-12031-00(**) M12 150mm 75mm 75mm 75-95mm
90101-12036-00(**) M12 170mm 75mm 95mm 95-115mm
* Reference data
** High tension bolts for F350A
