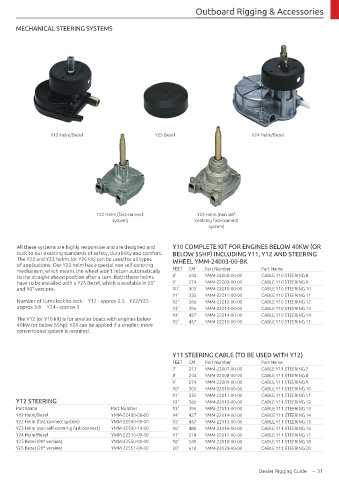

Page 33 - Yamaha Marine Zubehör Katalog 2020

Outboard Rigging & Accessories

MECHANICAL STEERING SYSTEMS

Y12 Helm/Bezel Y25 Bezel Y24 Helm/Bezel

Y22 Helm (fast-connect Y23 Helm (non self-
system) centring fast-connect
system)

All these systems are highly responsive and are designed and Y10 COMPLETE KIT FOR ENGINES BELOW 40KW (OR
built to our exacting standards of safety, durability and comfort. BELOW 55HP) INCLUDING Y11, Y12 AND STEERING
The Y22 and Y23 helms (or Y20 kit) can be used for all types WHEEL YMM-24003-00-BK
of applications. Our Y23 helm has a special non self-centring
mechanism, which means the wheel won’t return automatically FEET CM Part Number Part Name
to the straight ahead position after a turn. Both these helms 8' 244 YMM-22208-00-00 CABLE Y10 STEERING 8
have to be installed with a Y25 Bezel, which is available in 20° 9' 274 YMM-22209-00-00 CABLE Y10 STEERING 9
and 90° versions. 10' 305 YMM-22210-00-00 CABLE Y10 STEERING 10
11' 335 YMM-22211-00-00 CABLE Y10 STEERING 11
Number of turns lock-to-lock: Y12 - approx 2.5 Y22/Y23 - 12' 366 YMM-22212-00-00 CABLE Y10 STEERING 12
approx 3.8 Y24 - approx 3 13' 396 YMM-22213-00-00 CABLE Y10 STEERING 13
14' 427 YMM-22214-00-00 CABLE Y10 STEERING 14
The Y12 (or Y10 kit) is for smaller boats with engines below 15' 457 YMM-22215-00-00 CABLE Y10 STEERING 15
40kW (or below 55hp). Y24 can be applied if a simpler, more
conventional system is required.

Y11 STEERING CABLE (TO BE USED WITH Y12)
FEET CM Part Number Part Name
7' 213 YMM-22007-00-00 CABLE Y11 STEERING 7
8' 244 YMM-22008-00-00 CABLE Y11 STEERING 8
9' 274 YMM-22009-00-00 CABLE Y11 STEERING 9
10' 305 YMM-22010-00-00 CABLE Y11 STEERING 10
11' 335 YMM-22011-00-00 CABLE Y11 STEERING 11
Y12 STEERING 12' 366 YMM-22012-00-00 CABLE Y11 STEERING 12
Part Name Part Number 13' 396 YMM-22013-00-00 CABLE Y11 STEERING 13
Y12 Helm/Bezel YMM-22400-00-00 14' 427 YMM-22014-00-00 CABLE Y11 STEERING 14
Y22 Helm (fast-connect system) YMM-22500-00-00 15' 457 YMM-22015-00-00 CABLE Y11 STEERING 15
Y23 Helm (non self-centring fast-connect) YMM-22500-10-00 16' 488 YMM-22016-00-00 CABLE Y11 STEERING 16
Y24 Helm/Bezel YMM-22510-00-00 17' 518 YMM-22017-00-00 CABLE Y11 STEERING 17
Y25 Bezel (90º version) YMM-22550-00-00 18' 549 YMM-22018-00-00 CABLE Y11 STEERING 18
Y25 Bezel (20º version) YMM-22551-00-00 20' 610 YMM-22020-00-00 CABLE Y11 STEERING 20

Dealer Rigging Guide – 31
