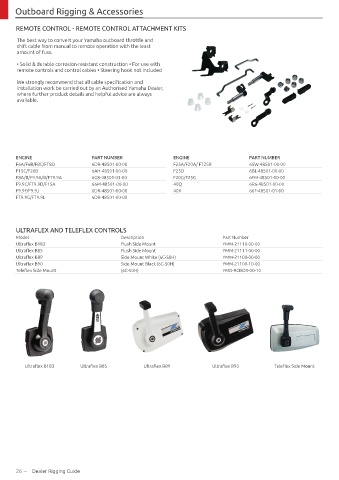

Outboard Rigging & Accessories

REMOTE CONTROL - REMOTE CONTROL ATTACHMENT KITS

The best way to convert your Yamaha outboard throttle and
shift cable from manual to remote operation with the least
amount of fuss.

• Solid & durable corrosion-resistant construction • For use with
remote controls and control cables • Steering hook not included

We strongly recommend that all cable specification and
installation work be carried out by an Authorised Yamaha Dealer,
where further product details and helpful advice are always
available.

ENGINE PART NUMBER ENGINE PART NUMBER
F6A/F6B/F8C/FT8D 6DR-48501-00-00 F25A/F20A/ FT25B 65W-48501-00-00
F15C/F20B 6AH-48501-00-00 F25D 6BL-48501-00-00
F8A/B/F9.9A/B/FT9.9A 6G8-48501-03-00 F20G/F25G 6FM-48501-00-00
F9.9C/FT9.9D/F15A 66M-48501-00-00 40Q 6R6-48501-00-00
F9.9F/F9.9J 6DR-48501-00-00 40X 66T-48501-01-00
FT9.9G/FT9.9L 6DR-48501-00-00

ULTRAFLEX AND TELEFLEX CONTROLS
Model Description Part Number
Ultraflex B183 Flush Side Mount YMM-21110-00-00
Ultraflex B85 Flush Side Mount YMM-21111-00-00
Ultraflex B89 Side Mount White (6C-50H) YMM-21100-00-00
Ultraflex B90 Side Mount Black (6C-50H) YMM-21100-10-00
Teleflex Side Mount (6C-50H) YMD-RCBOX-00-10

Ultraflex B183 Ultraflex B85 Ultraflex B89 Ultraflex B90 Teleflex Side Mount

26 – Dealer Rigging Guide
