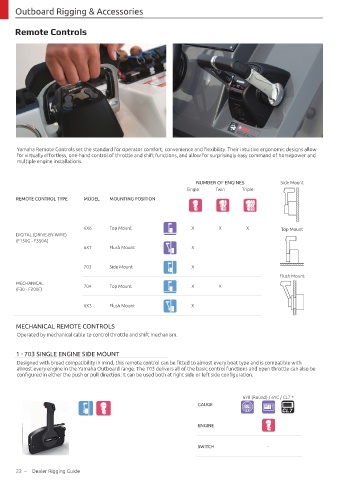

Page 24 - Yamaha Marine Zubehör Katalog 2020

Outboard Rigging & Accessories

Remote Controls

Yamaha Remote Controls set the standard for operator comfort, convenience and flexibility. Their intuitive ergonomic designs allow
for virtually effortless, one-hand control of throttle and shift functions, and allow for surprisingly easy command of horsepower and
multiple engine installations.

Side mount Top mount Flush mount
NUMBER OF ENGINES Side Mount
Single Twin Triple
REMOTE CONTROL TYPE MODEL MOUNTING POSITION

X
6X6 Top Mount X X Side mount Top mount Flush mount
Top Mount
DIGITAL (DRIVE-BY-WIRE)
(F150G - F350A)
6X7 Flush Mount X

703 Side Mount X
Side mount Top mount Flush mount
Flush Mount
MECHANICAL 704 Top Mount X X
(F30 - F200F)

6X3 Flush Mount X

MECHANICAL REMOTE CONTROLS
Operated by mechanical cable to control throttle and shift mechanism.

1 - 703 SINGLE ENGINE SIDE MOUNT
Designed with broad compatibility in mind, this remote control can be fitted to almost every boat type and is compatible with
almost every engine in the Yamaha Outboard range. The 703 delivers all of the basic control functions and open throttle can also be
configured in either the push or pull direction. It can be used both at right side or left side configuration.

6Y8 (Round) / 6YC / CL7 *
GAUGE
CL7

ENGINE

SWITCH -

22 – Dealer Rigging Guide
