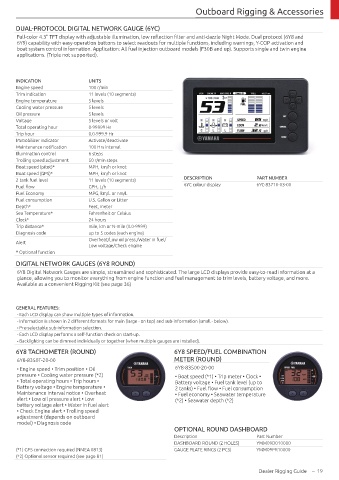

Outboard Rigging & Accessories

DUAL-PROTOCOL DIGITAL NETWORK GAUGE (6YC)
Full-color 4.3” TFT display with adjustable illumination, low reflection filter and anti-dazzle Night Mode. Dual protocol (6Y8 and
6Y9) capability with easy-operation buttons to select readouts for multiple functions, including warnings, Y-COP activation and
boat system control information. Application: All fuel injection outboard models (F30B and up). Supports single and twin engine
applications. (Triple not supported).

INDICATION UNITS
Engine speed 100 r/min
Trim indication 11 levels (10 segments)
Engine temperature 5 levels
Cooling water pressure 5 levels
Oil pressure 5 levels
Voltage 5 levels or volt
Total operating hour 0-99999 Hr
Trip hour 0.0-999.9 Hr
Immobilizer indicator Activate/deactivate
Maintenance notification 100 Hrs interval
Illumination control 6 steps
Trolling speed adjustment 50 r/min steps
Boat speed (pitot)* MPH, km/h or knot
Boat speed (GPS)* MPH, km/h or knot
2 tank fuel level 11 levels (10 segments) DESCRIPTION PART NUMBER
Fuel flow GPH, L/h 6YC colour display 6YC-83710-03-00
Fuel Economy MPG, km/L or nm/L
Fuel consumption U.S. Gallon or Litter
Depth* Feet, meter
Sea Temperature* Fahrenheit or Celsius
Clock* 24 hours
Trip distance* mile, km or N-mile (0.0-9999)
Diagnosis code up to 5 codes (each engine)
Overheat/Low oil press./Water in fuel/
Alert
Low voltage/Check engine
* Optional function
DIGITAL NETWORK GAUGES (6Y8 ROUND)
6Y8 Digital Network Gauges are simple, streamlined and sophisticated. The large LCD displays provide easy-to-read information at a
glance, allowing you to monitor everything from engine function and fuel management to trim levels, battery voltage, and more.
Available as a convenient Rigging Kit (see page 36)

GENERAL FEATURES:
- Each LCD display can show multiple types of information.
- Information is shown in 2 different formats for main (large - on top) and sub-information (small - below).
- Pre-selectable sub-information selection.
- Each LCD display performs a self-function check on start-up.
- Backlighting can be dimmed individually or together (when multiple gauges are installed).
6Y8 TACHOMETER (ROUND) 6Y8 SPEED/FUEL COMBINATION
6Y8-8350T-20-00 METER (ROUND)
• Engine speed • Trim position • Oil 6Y8-83500-20-00
pressure • Cooling water pressure (*2) • Boat speed (*1) • Trip meter • Clock •
• Total operating hours • Trip hours • Battery voltage • Fuel tank level (up to
Battery voltage • Engine temperature • 2 tanks) • Fuel flow • Fuel consumption
Maintenance interval notice • Overheat • Fuel economy • Seawater temperature
alert • Low oil pressure alert • Low (*2) • Seawater depth (*2)
battery voltage alert • Water in fuel alert
• Check Engine alert • Trolling speed
adjustment (depends on outboard
model) • Diagnosis code
OPTIONAL ROUND DASHBOARD
Description Part Number
DASHBOARD ROUND (2 HOLES) YMM09D010000
(*1) GPS connection required (NMEA 0813) GAUGE PLATE RINGS (2 PCS) YMM09PR10000
(*2) Optional sensor required (see page 81)

Dealer Rigging Guide – 19
