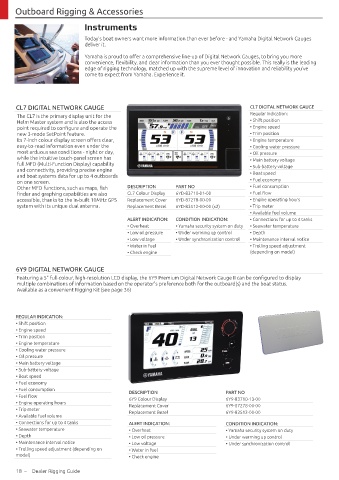

Page 20 - Yamaha Marine Zubehör Katalog 2020

Outboard Rigging & Accessories

Instruments

Today's boat owners want more information than ever before - and Yamaha Digital Network Gauges
deliver it.

Yamaha is proud to offer a comprehensive line-up of Digital Network Gauges, to bring you more
convenience, flexibility, and clear information than you ever thought possible. This really is the leading
edge of rigging technology, matched up with the supreme level of innovation and reliability you’ve
come to expect from Yamaha. Experience it.

CL7 DIGITAL NETWORK GAUGE CL7 DIGITAL NETWORK GAUGE
The CL7 is the primary display unit for the Regular indication:
Helm Master system and is also the access • Shift position
point required to configure and operate the • Engine speed
new 3-mode SetPoint feature. • Trim position
Its 7-inch colour display screen offers clear, • Engine temperature
easy-to-read information even under the • Cooling water pressure
most arduous sea conditions - night or day, • Oil pressure
while the intuitive touch-panel screen has • Main battery voltage
full MFD (Multi-Function Display) capability • Sub-battery voltage
and connectivity, providing precise engine
and boat systems data for up to 4 outboards • Boat speed
on one screen. • Fuel economy
Other MFD functions, such as maps, fish DESCRIPTION PART NO • Fuel consumption
finder and graphing capabilities are also CL7 Colour Display 6YD-83710-01-00 • Fuel flow
accessible, thanks to the in-built 10MHz GPS Replacement Cover 6YD-87278-00-00 • Engine operating hours
system with its unique dual antenna. Replacement Bezel 6YD-83512-00-00 (x2) • Trip meter
• Available fuel volume
ALERT INDICATION: CONDITION INDICATION: • Connections for up to 4 tanks
• Overheat • Yamaha security system on duty • Seawater temperature
• Low oil pressure • Under warming up control • Depth
• Low voltage • Under synchronization control • Maintenance interval notice
• Water in fuel • Trolling speed adjustment
• Check engine (depending on model)

6Y9 DIGITAL NETWORK GAUGE
Featuring a 5” full-colour, high-resolution LCD display, the 6Y9 Premium Digital Network Gauge II can be configured to display
multiple combinations of information based on the operator's preference both for the outboard(s) and the boat status.
Available as a convenient Rigging Kit (see page 36)

REGULAR INDICATION:
• Shift position
• Engine speed
• Trim position
• Engine temperature
• Cooling water pressure
• Oil pressure
• Main battery voltage
• Sub-battery voltage
• Boat speed
• Fuel economy
• Fuel consumption DESCRIPTION PART NO
• Fuel flow 6Y9 Colour Display 6Y9-83710-13-00
• Engine operating hours Replacement Cover 6Y9-87278-00-00
• Trip meter Replacement Bezel 6Y9-83512-00-00
• Available fuel volume
• Connections for up to 4 tanks ALERT INDICATION: CONDITION INDICATION:
• Seawater temperature • Overheat • Yamaha security system on duty
• Depth • Low oil pressure • Under warming up control
• Maintenance interval notice • Low voltage • Under synchronization control
• Trolling speed adjustment (depending on • Water in fuel
model) • Check engine
