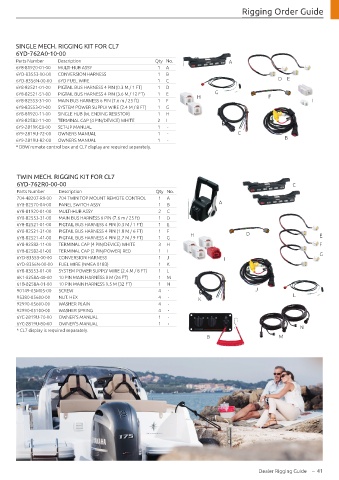

Rigging Order Guide

SINGLE MECH. RIGGING KIT FOR CL7
6YD-762A0-10-00
Parts Number Description Qty No. A
6Y8-81920-01-00 MULTI-HUB ASSY 1 A
6YD-83553-00-00 CONVERSION HARNESS 1 B
6YD-8356N-00-00 6YD FUEL WIRE 1 C D E
6Y8-82521-01-00 PIGTAIL BUS HARNESS 4 PIN (0.3 M / 1 FT) 1 D
6Y8-82521-51-00 PIGTAIL BUS HARNESS 4 PIN (3.6 M / 12 FT) 1 E H G F
6Y8-82553-31-00 MAIN BUS HARNESS 6 PIN (7.6 m / 25 ft) 1 F I
6Y8-83553-01-00 SYSTEM POWER SUPPLY WIRE (2.4 M / 8 FT) 1 G
6Y8-81920-11-00 SINGLE HUB (W. ENDING RESISTOR) 1 H
6Y8-82582-11-00 TERMINAL CAP (4 PIN/DEVICE) WHITE 2 I
6Y9-2819K-E0-00 SET-UP MANUAL 1 -
6Y9-2819U-72-00 OWNERS MANUAL 1 - C
6Y9-2819U-82-00 OWNERS MANUAL 1 - B
* DBW remote control box and CL7 display are required separately.

TWIN MECH. RIGGING KIT FOR CL7
6YD-762R0-00-00 C
Parts Number Description Qty No.
704-48207-R0-00 704 TWIN TOP MOUNT REMOTE CONTROL 1 A
6Y8-82570-04-00 PANEL SWITCH ASSY 1 B A
6Y8-81920-01-00 MULTI-HUB ASSY 2 C
6Y8-82553-31-00 MAIN BUS HARNESS 6 PIN (7.6 m / 25 ft) 1 D
6Y8-82521-01-00 PIGTAIL BUS HARNESS 4 PIN (0.3 M / 1 FT) 1 E
6Y8-82521-31-00 PIGTAIL BUS HARNESS 4 PIN (1.8 M / 6 FT) 1 F H D
6Y8-82521-41-00 PIGTAIL BUS HARNESS 4 PIN (2.7 M / 9 FT) 1 G E
6Y8-82582-11-00 TERMINAL CAP (4 PIN/DEVICE) WHITE 3 H F
6Y8-82582-01-00 TERMINAL CAP (2 PIN/POWER) RED 1 I G
6YD-83553-00-00 CONVERSION HARNESS 1 J I
6YD-8356N-00-00 FUEL WIRE (NMEA 0183) 1 K
6Y8-83553-01-00 SYSTEM POWER SUPPLY WIRE (2.4 M / 8 FT) 1 L
6K1-8258A-40-00 10 PIN MAIN HARNESS 8 M (26 FT) 1 M
61B-8258A-01-00 10 PIN MAIN HARNESS 9.5 M (32 FT) 1 N
90149-05M05-00 SCREW 4 - J
95380-05600-00 NUT. HEX 4 - K L
92990-05600-00 WASHER PLAIN 4 -
92990-05100-00 WASHER SPRING 4 -
6YC-2819U-70-00 OWNER'S MANUAL 1 -
6YC-2819U-80-00 OWNER'S MANUAL 1 - N
* CL7 display is required separately.
B M

Dealer Rigging Guide – 41
