P. 45

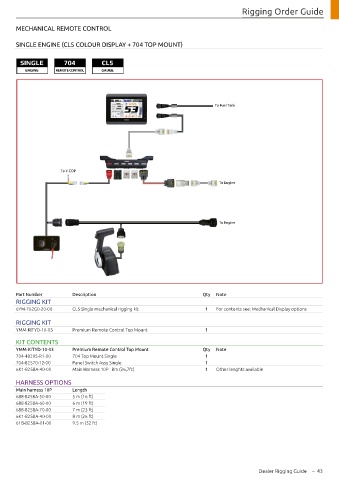

Rigging Order Guide


       MECHANICAL REMOTE CONTROL

       SINGLE ENGINE (CL5 COLOUR DISPLAY + 704 TOP MOUNT)


        SINGLE          704          CL5
          ENGINE     REMOTE CONTROL  GAUGE






                                                                             To Fuel Tank












                      To Y-COP

                                                                              To Engine






                                                                              To Engine














       Part Number        Description                                   Qty  Note
       RIGGING KIT
       6YM-762G0-20-00    CL5 Single mechanical rigging kit              1   For contents see: Mechanical Display options

       RIGGING KIT
       YMM-KITYD-10-03    Premium Remote Control Top Mount               1
       KIT CONTENTS
       YMM-KITYD-10-03    Premium Remote Control Top Mount              Qty  Note
       704-48205-R1-00    704 Top Mount Single                           1
       704-82570-12-00    Panel Switch Assy Single                       1
       6K1-8258A-40-00    Main Harness 10P   8m (26,7ft)                 1   Other lenghts available

       HARNESS OPTIONS
       Main harness 10P   Length
       688-8258A-50-00    5 m (16 ft)
       688-8258A-60-00    6 m (19 ft)
       688-8258A-70-00    7 m (23 ft)
       6K1-8258A-40-00    8 m (26 ft)
       61B-8258A-01-00    9.5 m (32 ft)









                                                                                            Dealer Rigging Guide  –  43
