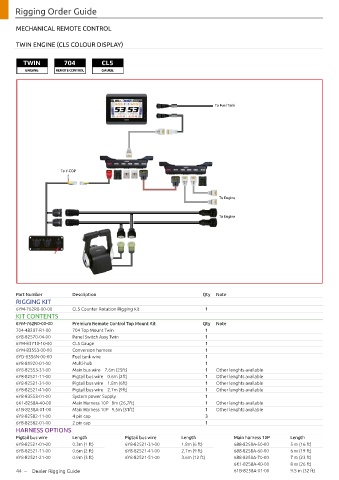

Rigging Order Guide
MECHANICAL REMOTE CONTROL
TWIN ENGINE (CL5 COLOUR DISPLAY)
TWIN 704 CL5
ENGINE REMOTE CONTROL GAUGE
To Fuel Tank
To Y-COP
To Engine
To Engine
Part Number Description Qty Note
RIGGING KIT
6YM-762R0-00-00 CL5 Counter Rotation Rigging Kit 1
KIT CONTENTS
6YM-762R0-00-00 Premium Remote Control Top Mount Kit Qty Note
704-48207-R1-00 704 Top Mount Twin 1
6Y8-82570-04-00 Panel Switch Assy Twin 1
6YM-83710-10-00 CL5 Gauge 1
6YM-83553-00-00 Conversion harness 1
6YD-8356N-00-00 Fuel tank wire 1
6Y8-81920-01-00 Multi-hub 1
6Y8-82553-31-00 Main bus wire 7.6m (25ft) 1 Other lenghts available
6Y8-82521-11-00 Pigtail bus wire 0.6m (2ft) 1 Other lenghts available
6Y8-82521-31-00 Pigtail bus wire 1.8m (6ft) 1 Other lenghts available
6Y8-82521-41-00 Pigtail bus wire 2.7m (9ft) 1 Other lenghts available
6Y8-83553-01-00 System power Supply 1
6K1-8258A-40-00 Main Harness 10P 8m (26,7ft) 1 Other lenghts available
61B-8258A-01-00 Main Harness 10P 9.5m (31ft) 1 Other lenghts available
6Y8-82582-11-00 4 pin cap 3
6Y8-82582-01-00 2 pin cap 1
HARNESS OPTIONS
Pigtail bus wire Length Pigtail bus wire Length Main harness 10P Length
6Y8-82521-01-00 0.3m (1 ft) 6Y8-82521-31-00 1.8m (6 ft) 688-8258A-50-00 5 m (16 ft)
6Y8-82521-11-00 0.6m (2 ft) 6Y8-82521-41-00 2.7m (9 ft) 688-8258A-60-00 6 m (19 ft)
6Y8-82521-21-00 0.9m (3 ft) 6Y8-82521-51-00 3.6m (12 ft) 688-8258A-70-00 7 m (23 ft)
6K1-8258A-40-00 8 m (26 ft)
44 – Dealer Rigging Guide 61B-8258A-01-00 9.5 m (32 ft)
