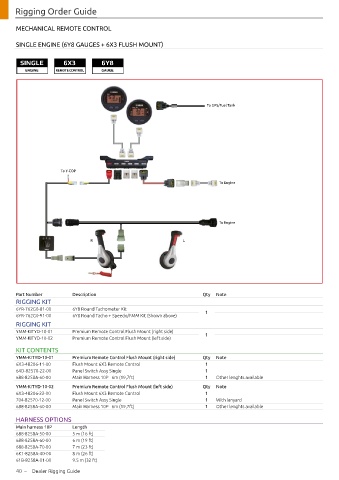

Rigging Order Guide
MECHANICAL REMOTE CONTROL
SINGLE ENGINE (6Y8 GAUGES + 6X3 FLUSH MOUNT)
SINGLE 6X3 6Y8
ENGINE REMOTE CONTROL GAUGE
To GPS/Fuel Tank
To Y-COP
To Engine
To Engine
R L
Part Number Description Qty Note
RIGGING KIT
6YR-762G0-81-00 6Y8 Round Tachometer Kit
1
6YR-762G0-91-00 6Y8 Round Tacho + Speedo/FMM Kit (Shown above)
RIGGING KIT
YMM-KITYD-10-01 Premium Remote Control Flush Mount (right side)
1
YMM-KITYD-10-02 Premium Remote Control Flush Mount (left side)
KIT CONTENTS
YMM-KITYD-10-01 Premium Remote Control Flush Mount (right side) Qty Note
6X3-48206-11-00 Flush Mount 6X3 Remote Control 1
64D-82570-22-00 Panel Switch Assy Single 1
688-8258A-60-00 Main Harness 10P 6m (19,7ft) 1 Other lenghts available
YMM-KITYD-10-02 Premium Remote Control Flush Mount (left side) Qty Note
6X3-48206-22-00 Flush Mount 6X3 Remote Control 1
704-82570-12-00 Panel Switch Assy Single 1 With lanyard
688-8258A-60-00 Main Harness 10P 6m (19,7ft) 1 Other lenghts available
HARNESS OPTIONS
Main harness 10P Length
688-8258A-50-00 5 m (16 ft)
688-8258A-60-00 6 m (19 ft)
688-8258A-70-00 7 m (23 ft)
6K1-8258A-40-00 8 m (26 ft)
61B-8258A-01-00 9.5 m (32 ft)
