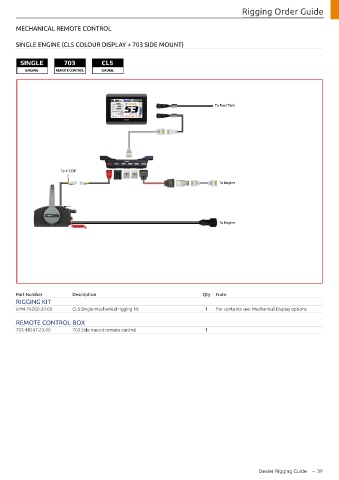

Rigging Order Guide


       MECHANICAL REMOTE CONTROL

       SINGLE ENGINE (CL5 COLOUR DISPLAY + 703 SIDE MOUNT)


        SINGLE          703          CL5
          ENGINE     REMOTE CONTROL  GAUGE






                                                                             To Fuel Tank












                      To Y-COP

                                                                              To Engine






                                                                              To Engine














       Part Number        Description                                   Qty  Note
       RIGGING KIT
       6YM-762G0-20-00    CL5 Single mechanical rigging kit              1   For contents see: Mechanical Display options

       REMOTE CONTROL BOX
       703-48207-23-00    703 Side mount remote control                  1





























                                                                                            Dealer Rigging Guide  –  39
