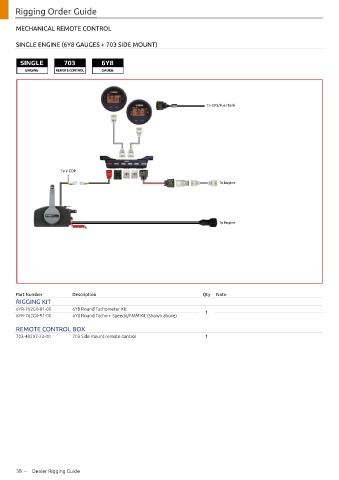

Rigging Order Guide


       MECHANICAL REMOTE CONTROL

       SINGLE ENGINE (6Y8 GAUGES + 703 SIDE MOUNT)


        SINGLE          703          6Y8
          ENGINE     REMOTE CONTROL  GAUGE






                                                                          To GPS/Fuel Tank












                      To Y-COP

                                                                              To Engine






                                                                              To Engine














       Part Number        Description                                   Qty  Note
       RIGGING KIT
       6YR-762G0-81-00    6Y8 Round Tachometer Kit
                                                                         1
       6YR-762G0-91-00    6Y8 Round Tacho + Speedo/FMM Kit (Shown above)

       REMOTE CONTROL BOX
       703-48207-23-00    703 Side mount remote control                  1
