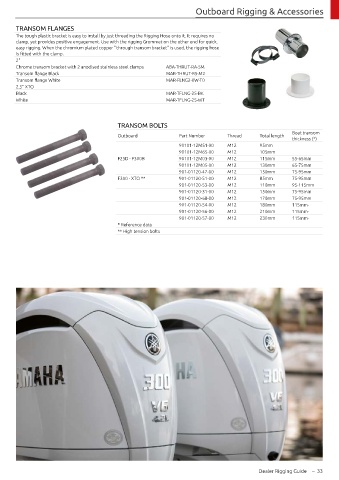

Outboard Rigging & Accessories

TRANSOM FLANGES
The tough plastic bracket is easy to install by just threading the Rigging Hose onto it. It requires no
clamp, yet provides positive engagement. Use with the rigging Grommet on the other end for quick,
easy rigging. When the chromium plated copper ''through transom bracket'' is used, the rigging hose
is fitted with the clamp.
2"
Chrome transom bracket with 2 anodised stainless steel clamps ABA-THRUT-RA-SM
Transom flange Black MAR-THRUT-RS-M2
Transom flange White MAR-FLNG2-0W-T0
2,5" XTO
Black MAR-TFLNG-25-BK
White MAR-TFLNG-25-WT

TRANSOM BOLTS
Boat transom
Outboard Part Number Thread Total length
thickness (*)
90101-12M51-00 M12 95mm
90101-12M65-00 M12 105mm
F25D - F300B 90101-12M03-00 M12 115mm 55-65mm
90101-12M05-00 M12 130mm 65-75mm
901-01120-47-00 M12 150mm 75-95mm
F300 - XTO ** 901-01120-51-00 M12 85mm 75-95mm
901-01120-53-00 M12 110mm 95-115mm
901-01120-31-00 M12 150mm 75-95mm
901-01120-68-00 M12 170mm 75-95mm
901-01120-54-00 M12 180mm 115mm-
901-01120-56-00 M12 210mm 115mm-
901-01120-57-00 M12 230mm 115mm-
* Reference data
** High tension bolts

Dealer Rigging Guide – 33
