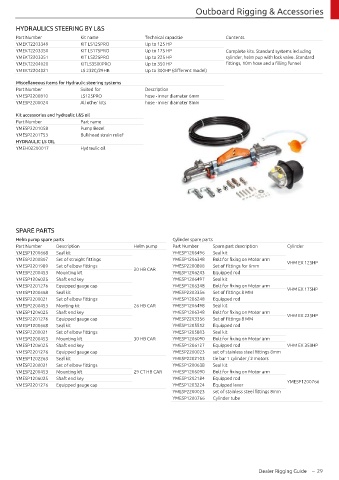

Page 31 - Yamaha Marine Zubehör 2021

Outboard Rigging & Accessories

HYDRAULICS STEERING BY L&S
Part Number Kit name Technical capacitie Contents
YMEKT2203349 KIT LS125PRO Up to 125 HP
YMEKT2203350 KIT LS175PRO Up to 175 HP Complete kits. Standard systems including
YMEKT2203351 KIT LS225PRO Up to 225 HP cylinder, helm pup with lock valve. Standard
YMEKT2204020 KITLS3500PRO Up to 350 HP fittings, 10m hose and a filling funnel
YMEKT2204021 LS 232C/29HB Up to 300HP (different model)

Miscellaneous items for Hydraulic steering systems
Part Number Suited for Description
YMESP2200810 LS125PRO hose - inner diamater 6mm
YMESP2200024 All other kits hose - inner diamater 8mm

Kit accessories and hydraulic L&S oil
Part Number Part name
YMESP2201058 Pump Bezel
YMESP2201753 Bulkhead strain relief
HYDRAULIC LS OIL
YMEH02200017 Hydraulic oil

SPARE PARTS
Helm pump spare parts Cylinder spare parts
Part Number Description Helm pump Part Number Spare part description Cylinder
YMESP1200668 Seal kit YMESP1206496 Seal kit
YMESP2200807 Set of straight fittings YMESP1206348 Bolt for fixing on Motor arm VHM EX 125HP
YMESP2201989 Set of elbow fittings YMESP2200808 Set of fittings for 6mm
20 HB CAR
YMESP2200453 Mounting kit YMESP1206243 Equipped rod
YMESP1206025 Shaft end key YMESP1206497 Seal kit
YMESP2201276 Equipped gauge cap YMESP1206348 Bolt for fixing on Motor arm VHM EX 175HP
YMESP1200668 Seal kit YMESP2203356 Set of fittings 8 MM
YMESP2200021 Set of elbow fittings YMESP1206248 Equipped rod
YMESP2200453 Monting kit 26 HB CAR YMESP1206498 Seal kit
YMESP1206025 Shaft end key YMESP1206348 Bolt for fixing on Motor arm VHM EX 225HP
YMESP2201276 Equipped gauge cap YMESP2203356 Set of fittings 8 MM
YMESP1200668 Seal kit YMESP1205512 Equipped rod
YMESP2200021 Set of elbow fittings YMESP1205803 Seal kit
YMESP2200453 Mounting kit 30 HB CAR YMESP1206090 Bolt for fixing on Motor arm
YMESP1206025 Shaft end key YMESP1206127 Equipped rod VHM EX 350HP
YMESP2201276 Equipped gauge cap YMESP2200023 set of stainless steel fittings 8mm
YMESP1202263 Seal kit YMESP2202103 tie bar 1 cylinder / 2 motors
YMESP2200021 Set of elbow fittings YMESP1200638 Seal kit
YMESP2200453 Mounting kit 29 CT HB CAR YMESP1206090 Bolt for fixing on Motor arm
YMESP1206025 Shaft end key YMESP1202184 Equipped rod
YMESP1200766
YMESP2201276 Equipped gauge cap YMESP1203224 Equipped lever
YMESP2200023 set of stainless steel fittings 8mm
YMESP1200766 Cylinder tube

Dealer Rigging Guide – 29
