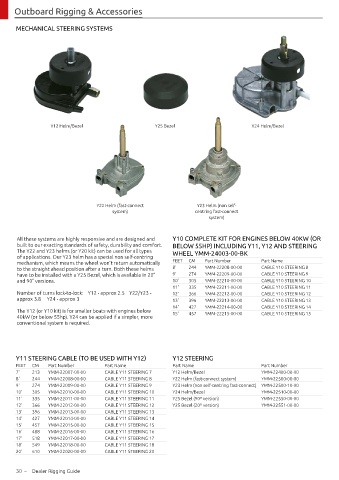

Page 32 - Yamaha Marine Zubehör 2021

Outboard Rigging & Accessories

MECHANICAL STEERING SYSTEMS

Y12 Helm/Bezel Y25 Bezel Y24 Helm/Bezel

Y22 Helm (fast-connect Y23 Helm (non self-
system) centring fast-connect
system)

All these systems are highly responsive and are designed and Y10 COMPLETE KIT FOR ENGINES BELOW 40KW (OR
built to our exacting standards of safety, durability and comfort. BELOW 55HP) INCLUDING Y11, Y12 AND STEERING
The Y22 and Y23 helms (or Y20 kit) can be used for all types WHEEL YMM-24003-00-BK
of applications. Our Y23 helm has a special non self-centring
mechanism, which means the wheel won’t return automatically FEET CM Part Number Part Name
to the straight ahead position after a turn. Both these helms 8' 244 YMM-22208-00-00 CABLE Y10 STEERING 8
have to be installed with a Y25 Bezel, which is available in 20° 9' 274 YMM-22209-00-00 CABLE Y10 STEERING 9
and 90° versions. 10' 305 YMM-22210-00-00 CABLE Y10 STEERING 10
11' 335 YMM-22211-00-00 CABLE Y10 STEERING 11
Number of turns lock-to-lock: Y12 - approx 2.5 Y22/Y23 - 12' 366 YMM-22212-00-00 CABLE Y10 STEERING 12
approx 3.8 Y24 - approx 3 13' 396 YMM-22213-00-00 CABLE Y10 STEERING 13
14' 427 YMM-22214-00-00 CABLE Y10 STEERING 14
The Y12 (or Y10 kit) is for smaller boats with engines below 15' 457 YMM-22215-00-00 CABLE Y10 STEERING 15
40kW (or below 55hp). Y24 can be applied if a simpler, more
conventional system is required.

Y11 STEERING CABLE (TO BE USED WITH Y12) Y12 STEERING
FEET CM Part Number Part Name Part Name Part Number
7' 213 YMM-22007-00-00 CABLE Y11 STEERING 7 Y12 Helm/Bezel YMM-22400-00-00
8' 244 YMM-22008-00-00 CABLE Y11 STEERING 8 Y22 Helm (fast-connect system) YMM-22500-00-00
9' 274 YMM-22009-00-00 CABLE Y11 STEERING 9 Y23 Helm (non self-centring fast-connect) YMM-22500-10-00
10' 305 YMM-22010-00-00 CABLE Y11 STEERING 10 Y24 Helm/Bezel YMM-22510-00-00
11' 335 YMM-22011-00-00 CABLE Y11 STEERING 11 Y25 Bezel (90º version) YMM-22550-00-00
12' 366 YMM-22012-00-00 CABLE Y11 STEERING 12 Y25 Bezel (20º version) YMM-22551-00-00
13' 396 YMM-22013-00-00 CABLE Y11 STEERING 13
14' 427 YMM-22014-00-00 CABLE Y11 STEERING 14
15' 457 YMM-22015-00-00 CABLE Y11 STEERING 15
16' 488 YMM-22016-00-00 CABLE Y11 STEERING 16
17' 518 YMM-22017-00-00 CABLE Y11 STEERING 17
18' 549 YMM-22018-00-00 CABLE Y11 STEERING 18
20' 610 YMM-22020-00-00 CABLE Y11 STEERING 20

30 – Dealer Rigging Guide
