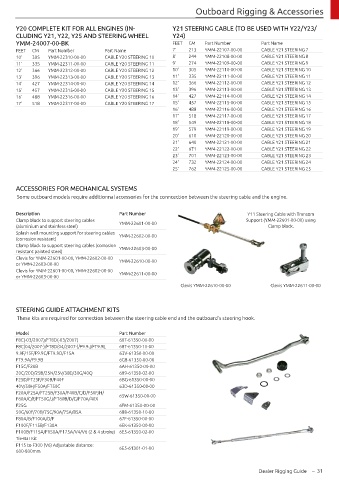

Page 33 - Yamaha Marine Zubehör 2021
P. 33
Outboard Rigging & Accessories
Y20 COMPLETE KIT FOR ALL ENGINES (IN- Y21 STEERING CABLE (TO BE USED WITH Y22/Y23/
CLUDING Y21, Y22, Y25 AND STEERING WHEEL Y24)
YMM-24007-00-BK FEET CM Part Number Part Name
FEET CM Part Number Part Name 7' 213 YMM-22107-00-00 CABLE Y21 STEERING 7
10' 305 YMM-22310-00-00 CABLE Y20 STEERING 10 8' 244 YMM-22108-00-00 CABLE Y21 STEERING 8
11' 335 YMM-22311-00-00 CABLE Y20 STEERING 11 9' 274 YMM-22109-00-00 CABLE Y21 STEERING 9
12' 366 YMM-22312-00-00 CABLE Y20 STEERING 12 10' 305 YMM-22110-00-00 CABLE Y21 STEERING 10
13' 396 YMM-22313-00-00 CABLE Y20 STEERING 13 11' 335 YMM-22111-00-00 CABLE Y21 STEERING 11
14' 427 YMM-22314-00-00 CABLE Y20 STEERING 14 12' 366 YMM-22112-00-00 CABLE Y21 STEERING 12
15' 457 YMM-22315-00-00 CABLE Y20 STEERING 15 13' 396 YMM-22113-00-00 CABLE Y21 STEERING 13
16' 488 YMM-22316-00-00 CABLE Y20 STEERING 16 14' 427 YMM-22114-00-00 CABLE Y21 STEERING 14
17' 518 YMM-22317-00-00 CABLE Y20 STEERING 17 15' 457 YMM-22115-00-00 CABLE Y21 STEERING 15
16' 488 YMM-22116-00-00 CABLE Y21 STEERING 16
17' 518 YMM-22117-00-00 CABLE Y21 STEERING 17
18' 549 YMM-22118-00-00 CABLE Y21 STEERING 18
19' 579 YMM-22119-00-00 CABLE Y21 STEERING 19
20' 610 YMM-22120-00-00 CABLE Y21 STEERING 20
21' 640 YMM-22121-00-00 CABLE Y21 STEERING 21
22' 671 YMM-22122-00-00 CABLE Y21 STEERING 22
23' 701 YMM-22123-00-00 CABLE Y21 STEERING 23
24' 732 YMM-22124-00-00 CABLE Y21 STEERING 24
25' 762 YMM-22125-00-00 CABLE Y21 STEERING 25
ACCESSORIES FOR MECHANICAL SYSTEMS
Some outboard models require additionnal accessories for the conncection between the steering cable and the engine.
Description Part Number Y11 Steering Cable with Transom
Clamp block to support steering cables YMM-22601-00-00 Support (YMM-22601-00-00) using
(aluminium and stainless steel) Clamp block.
Splash well mounting support for steering cables YMM-22602-00-00
(corrosion resistant)
Clamp block to support steering cables (corrosion
YMM-22603-00-00
resistant painted steel)
Clevis for YMM-22601-00-00, YMM-22602-00-00
YMM-22610-00-00
or YMM-22603-00-00
Clevis for YMM-22601-00-00, YMM-22602-00-00
YMM-22611-00-00
or YMM-22603-00-00
Clevis YMM-22610-00-00 Clevis YMM-22611-00-00
STEERING GUIDE ATTACHMENT KITS
These kits are required for connection between the steering cable end and the outboard's steering hook.
Model Part Number
F8C(-03/2007)/FT8D(-03/2007) 68T-61350-00-00
F8C(04/2007-)/FT8D(04/2007-)/F9.9J/FT9.9L 68T-61350-10-00
9.9F/15F/F9.9C/FT9.9D/F15A 63V-61350-00-00
FT9.9A/F9.9B 6G8-61350-00-00
F15C/F20B 6AH-61350-00-00
20C/20D/25B/25N/25V/30D/30G/40Q 689-61350-02-00
F25D/FT25F/F30B/F40F 6BG-61350-00-00
40V/50H/F50A/FT50C 63D-61350-00-00
F20A/F25A/FT25B/F30A/F40B/C/D/F50F/H/ 65W-61350-00-00
F60A/C/F/FT50G/J/FT60B/D/G/F70A/40X
F25G 6FM-61350-00-00
50G/60F/70B/75C/90A/75A/85A 688-61350-10-00
F80A/B/F100A/D/F 67F-61350-00-00
F100F/F115B/F130A 6EK-61350-00-00
F100B/F115A/F150A/F175A/V4/V6 (2 & 4 stroke) 6E5-61350-02-00
Tie-Bar Kit
F115 to F300 (V6) Adjustable distance:
600-800mm 6E5-61301-01-00
Dealer Rigging Guide – 31
