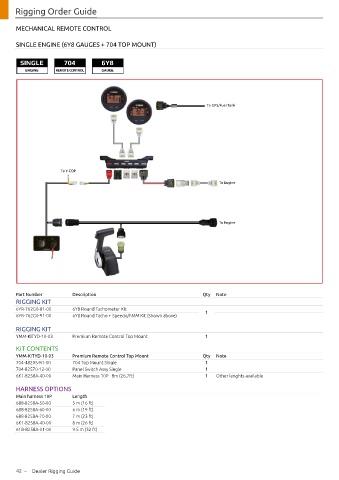

Rigging Order Guide


       MECHANICAL REMOTE CONTROL

       SINGLE ENGINE (6Y8 GAUGES + 704 TOP MOUNT)


        SINGLE          704          6Y8
          ENGINE     REMOTE CONTROL  GAUGE






                                                                          To GPS/Fuel Tank












                      To Y-COP

                                                                              To Engine






                                                                              To Engine














       Part Number        Description                                   Qty  Note
       RIGGING KIT
       6YR-762G0-81-00    6Y8 Round Tachometer Kit
                                                                         1
       6YR-762G0-91-00    6Y8 Round Tacho + Speedo/FMM Kit (Shown above)

       RIGGING KIT
       YMM-KITYD-10-03    Premium Remote Control Top Mount               1

       KIT CONTENTS
       YMM-KITYD-10-03    Premium Remote Control Top Mount              Qty  Note
       704-48205-R1-00    704 Top Mount Single                           1
       704-82570-12-00    Panel Switch Assy Single                       1
       6K1-8258A-40-00    Main Harness 10P   8m (26,7ft)                 1   Other lenghts available

       HARNESS OPTIONS
       Main harness 10P   Length
       688-8258A-50-00    5 m (16 ft)
       688-8258A-60-00    6 m (19 ft)
       688-8258A-70-00    7 m (23 ft)
       6K1-8258A-40-00    8 m (26 ft)
       61B-8258A-01-00    9.5 m (32 ft)
