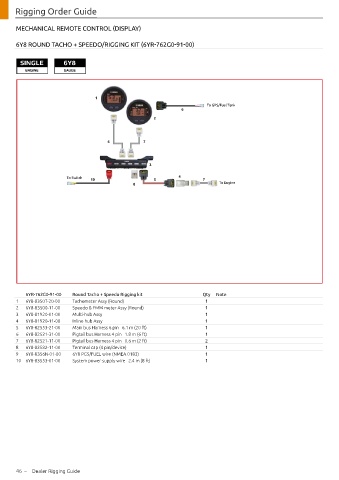

Rigging Order Guide

       MECHANICAL REMOTE CONTROL (DISPLAY)


       6Y8 ROUND TACHO + SPEEDO/RIGGING KIT (6YR-762G0-91-00)


        SINGLE         6Y8
          ENGINE       GAUGE




                                  1
                                                                          To GPS/Fuel Tank
                                                                 9
                                                       2



                                       6           7



                                                     3

                        To Switch                               4
                                 10                    5                7
                                                8                             To Engine





















          6YR-762G0-91-00  Round Tacho + Speedo Rigging kit             Qty  Note
       1  6Y8-8350T-20-00  Tachometer Assy (Round)                       1
       2  6Y8-83500-11-00  Speedo & FMM meter Assy (Round)               1
       3  6Y8-81920-01-00  Multi-hub Assy                                1
       4  6Y8-81920-11-00  Inline hub Assy                               1
       5  6Y8-82553-21-00  Main bus Harness 6 pin   6.1 m (20 ft)        1
       6  6Y8-82521-31-00  Pigtail bus Harness 4 pin   1.8 m (6 ft)      1
       7  6Y8-82521-11-00  Pigtail bus Harness 4 pin   0.6 m (2 ft)      2
       8  6Y8-82582-11-00  Terminal cap (4 pin/device)                   1
       9  6Y8-8356N-01-00  6Y8 PGS/FUEL wire (NMEA 0183)                 1
       10 6Y8-83553-01-00  System power supply wire   2.4 m (8 ft)       1
