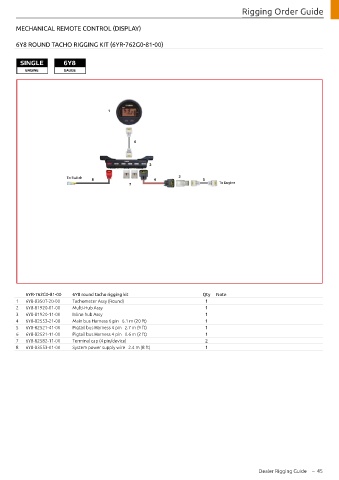

Rigging Order Guide
MECHANICAL REMOTE CONTROL (DISPLAY)
6Y8 ROUND TACHO RIGGING KIT (6YR-762G0-81-00)
SINGLE 6Y8
ENGINE GAUGE
1
6
2
To Switch 3
8 4 5
7 To Engine
6YR-762G0-81-00 6Y8 round tacho rigging kit Qty Note
1 6Y8-8350T-20-00 Tachometer Assy (Round) 1
2 6Y8-81920-01-00 Multi-Hub Assy 1
3 6Y8-81920-11-00 Inline hub Assy 1
4 6Y8-82553-21-00 Main bus Harness 6 pin 6.1 m (20 ft) 1
5 6Y8-82521-41-00 Pigtail bus Harness 4 pin 2.7 m (9 ft) 1
6 6Y8-82521-11-00 Pigtail bus Harness 4 pin 0.6 m (2 ft) 1
7 6Y8-82582-11-00 Terminal cap (4 pin/device) 2
8 6Y8-83553-01-00 System power supply wire 2.4 m (8 ft) 1
Dealer Rigging Guide – 45
