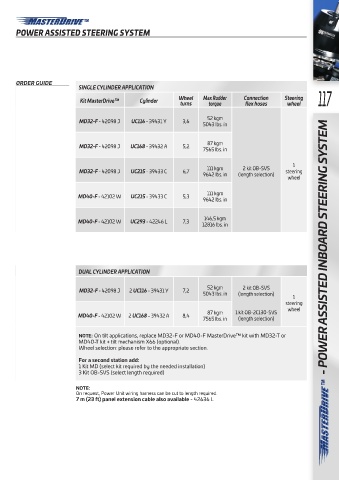

POWER ASSISTED STEERING SYSTEM
ORDER GUIDE
SINGLE CYLINDER APPLICATION
Kit MasterDrive™ Cylinder Wheel Max Rudder Connection Steering 117
turns
flex hoses
wheel
torque
52 kgm
MD32-F - 42098 J UC116 - 39431 Y 3,6 5043 lbs. in
87 kgm
MD32-F - 42098 J UC168 - 39432 A 5,2 7565 lbs. in
111 kgm 2 kit OB-SVS 1
MD32-F - 42098 J UC215 - 39433 C 6,7 9642 lbs. in (length selection) steering
wheel
111 kgm
MD40-F - 42102 W UC215 - 39433 C 5,3 9642 lbs. in
146,5 kgm
MD40-F - 42102 W UC293 - 42246 L 7,3 12816 lbs. in
DUAL CYLINDER APPLICATION - POWER ASSISTED INBOARD STEERING SYSTEM
52 kgm 2 kit OB-SVS
MD32-F - 42098 J 2 UC116 - 39431 Y 7,2 5043 lbs. in (length selection) 1
steering
87 kgm 1 kit OB-2C130-SVS wheel
MD40-F - 42102 W 2 UC168 - 39432 A 8,4 7565 lbs. in (length selection)
NOTE: On tilt applications, replace MD32-F or MD40-F MasterDrive™ kit with MD32-T or
MD40-T kit + tilt mechanism X66 (optional).
Wheel selection: please refer to the appropriate section.
For a second station add:
1 Kit MD (select kit required by the needed installation)
3 Kit OB-SVS (select length required)
TM
NOTE:
On request, Power Unit wiring harness can be cut to length required.
7 m (23 ft) panel extension cable also available - 42636 L
