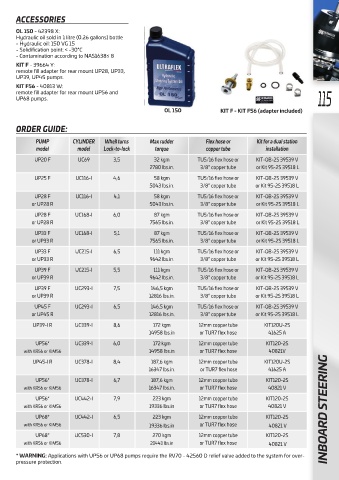

Page 117 - ULTRAFLEX Katalog 2021

ACCESSORIES

OL 150 - 42398 X:
Hydraulic oil sold in 1 litre (0.26 gallons) bottle
- Hydraulic oil: 150 VG 15
- Solidification point: < -30°C
- Contamination according to NAS1638≤ 8
KIT F - 39664 Y:
remote fill adapter for rear mount UP28, UP33,
UP39, UP45 pumps.
KIT F56 - 40813 W:
remote fill adapter for rear mount UP56 and
UP68 pumps. 115
OL 150 KIT F - KIT F56 (adapter included)

ORDER GUIDE:

PUMP CYLINDER Whell turns Max rudder Flex hose or Kit for a dual station
model model Lock-to-lock torque copper tube installation
UP20 F UC69 3,5 32 kgm TU5/16 flex hose or KIT-OB-2S 39539 V
2780 lbs.in. 3/8” copper tube or Kit 95-2S 39518 L
UP25 F UC116-I 4,6 58 kgm TU5/16 flex hose or KIT-OB-2S 39539 V
5043 lbs.in. 3/8” copper tube or Kit 95-2S 39518 L
UP28 F UC116-I 4,1 58 kgm TU5/16 flex hose or KIT-OB-2S 39539 V
or UP28 R 5043 lbs.in. 3/8” copper tube or Kit 95-2S 39518 L
UP28 F UC168-I 6,0 87 kgm TU5/16 flex hose or KIT-OB-2S 39539 V
or UP28 R 7565 lbs.in. 3/8” copper tube or Kit 95-2S 39518 L
UP33 F UC168-I 5,1 87 kgm TU5/16 flex hose or KIT-OB-2S 39539 V
or UP33 R 7565 lbs.in. 3/8” copper tube or Kit 95-2S 39518 L
UP33 F UC215-I 6,5 111 kgm TU5/16 flex hose or KIT-OB-2S 39539 V
or UP33 R 9642 lbs.in. 3/8” copper tube or Kit 95-2S 39518 L
UP39 F UC215-I 5,5 111 kgm TU5/16 flex hose or KIT-OB-2S 39539 V
or UP39 R 9642 lbs.in. 3/8” copper tube or Kit 95-2S 39518 L
UP39 F UC293-I 7,5 146,5 kgm TU5/16 flex hose or KIT-OB-2S 39539 V
or UP39 R 12816 lbs.in. 3/8” copper tube or Kit 95-2S 39518 L
UP45 F UC293-I 6,5 146,5 kgm TU5/16 flex hose or KIT-OB-2S 39539 V
or UP45 R 12816 lbs.in. 3/8” copper tube or Kit 95-2S 39518 L
UP39-I R UC339-I 8,6 172 kgm 12mm copper tube KIT120U-2S
14958 lbs.in or TUR7 flex hose 41625 A
UP56* UC339-I 6,0 172 kgm 12mm copper tube KIT120-2S
with KR56 or KIM56 14958 lbs.in or TUR7 flex hose 40821V
UP45-I R UC378-I 8,4 187,6 kgm 12mm copper tube KIT120U-2S
16347 lbs.in. or TUR7 flex hose 41625 A
UP56* UC378-I 6,7 187,6 kgm 12mm copper tube KIT120-2S
with KR56 or KIM56 16347 lbs.in. or TUR7 flex hose 40821 V
UP56* UC442-I 7,9 223 kgm 12mm copper tube KIT120-2S
with KR56 or KIM56 19336 lbs.in or TUR7 flex hose 40821 V INBOARD STEERING
UP68* UC442-I 6,5 223 kgm 12mm copper tube KIT120-2S
with KR56 or KIM56 19336 lbs.in or TUR7 flex hose 40821 V
UP68* UC530-I 7,8 270 kgm 12mm copper tube KIT120-2S
with KR56 or KIM56 23443 lbs.in or TUR7 flex hose 40821 V

* WARNING: Applications with UP56 or UP68 pumps require the RV70 - 42560 D relief valve added to the system for over-
pressure protection.
