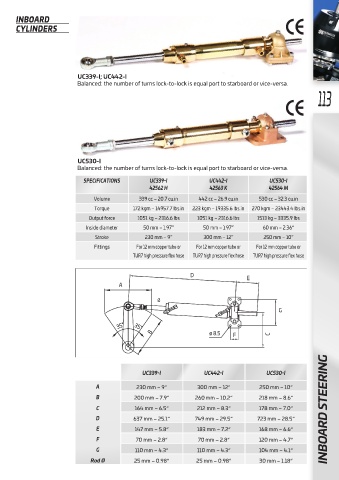

Page 115 - ULTRAFLEX Katalog 2021

INBOARD
CYLINDERS

UC339-I; UC442-I
Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa.
113

UC530-I
Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa.

SPECIFICATIONS UC339-I UC442-I UC530-I
42562 H 42563 K 42564 M

Volume 339 cc – 20.7 cu.in 442 cc – 26.9 cu.in 530 cc – 32.3 cu.in
Torque 172 kgm – 14957.7 lbs.in 223 kgm – 19335.6 lbs.in 270 kgm – 23443.4 lbs.in
Output force 1051 kg – 2316.6 lbs 1051 kg – 2316.6 lbs 1513 kg – 3335.9 lbs
Inside diameter 50 mm – 1.97” 50 mm – 1.97” 60 mm – 2.36“
Stroke 230 mm – 9” 300 mm – 12” 250 mm – 10”
Fittings For 12 mm copper tube or For 12 mm copper tube or For 12 mm copper tube or
TUR7 high pressure flex hose TUR7 high pressure flex hose TUR7 high pressure flex hose

D E

A

Ø
G

35° 35°
B ø 8.5 F C

UC339-I UC442-I UC530-I

A 230 mm – 9“ 300 mm – 12“ 250 mm – 10“
B 200 mm – 7.9“ 260 mm – 10.2“ 218 mm – 8.6“

C 164 mm – 6.5“ 212 mm – 8.3“ 178 mm – 7.0“ INBOARD STEERING
D 637 mm – 25.1“ 749 mm – 29.5“ 723 mm – 28.5“
E 147 mm – 5.8“ 183 mm – 7.2“ 168 mm – 6.6“
F 70 mm – 2.8“ 70 mm – 2.8“ 120 mm – 4.7“

G 110 mm – 4.3“ 110 mm – 4.3“ 104 mm – 4.1“
Rod Ø 25 mm – 0.98“ 25 mm – 0.98“ 30 mm – 1.18“
