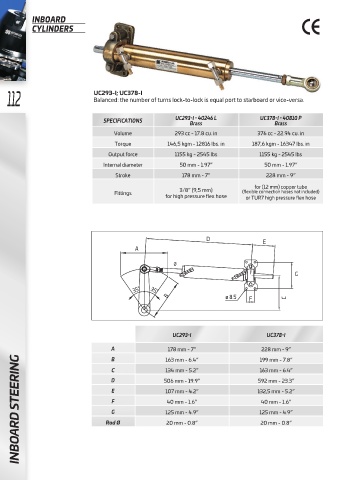

Page 114 - ULTRAFLEX Katalog 2021

INBOARD
CYLINDERS

112 Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa.
UC293-I; UC378-I

SPECIFICATIONS UC293-I - 40246 L UC378-I - 40810 P
Brass
Brass
Volume 293 cc - 17.8 cu. in 376 cc - 22.94 cu. in
Torque 146,5 kgm - 12816 lbs. in 187,6 kgm - 16347 lbs. in
Output force 1155 kg - 2545 lbs 1155 kg - 2545 lbs
Internal diameter 50 mm - 1.97” 50 mm - 1.97”

Stroke 178 mm - 7” 228 mm - 9”
for (12 mm) copper tube
3/8” (9,5 mm) (flexible connection hoses not included)
Fittings for high pressure flex hose or TUR7 high pressure flex hose

D E

A

Ø
G

35° 35°
B ø 8.5 F C

UC293-I UC378-I

A 178 mm - 7” 228 mm - 9”
INBOARD STEERING
B 163 mm - 6.4” 199 mm - 7.8”
C 134 mm - 5.2” 163 mm - 6.4”
D 506 mm - 19.9” 592 mm - 23.3”

E 107 mm - 4.2” 132,5 mm - 5.2”
F 40 mm - 1.6” 40 mm - 1.6”
G 125 mm - 4.9” 125 mm - 4.9”

Rod Ø 20 mm - 0.8” 20 mm - 0.8”
