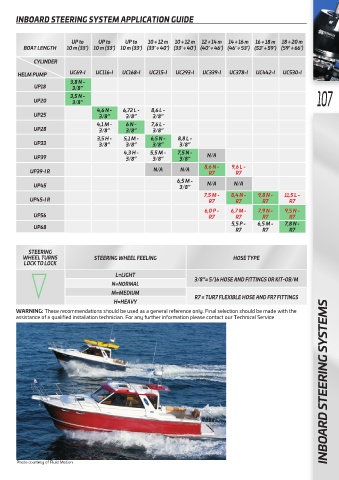

INBOARD STEERING SYSTEM APPLICATION GUIDE

UP to UP to UP to 10 ÷ 12 m 10 ÷ 12 m 12 ÷ 14 m 14 ÷ 16 m 16 ÷ 18 m 18 ÷ 20 m
BOAT LENGTH 10 m (33’) 10 m (33’) 10 m (33’) (33’ ÷ 40’) (33’ ÷ 40’) (40’ ÷ 46’) (46’ ÷ 53’) (53’ ÷ 59’) (59’ ÷ 66’)

CYLINDER

HELM PUMP UC69-I UC116-I UC168-I UC215-I UC293-I UC339-I UC378-I UC442-I UC530-I
3,8 N -
UP18 3/8”
3,5 N - 107
UP20 3/8”
4,6 N - 6,72 L - 8,6 L -
UP25 3/8” 3/8” 3/8”
4,1 M - 6 N - 7,6 L -
UP28 3/8” 3/8” 3/8”

3,5 H - 5,1 M - 6,5 N - 8,8 L -
UP33 3/8” 3/8” 3/8” 3/8”
4,3 H - 5,5 M - 7,5 N -
UP39 3/8” 3/8” 3/8” N/A

UP39-I R N/A N/A 8,6 N - 9,6 L -
R7
R7
6,5 M -
UP45 3/8” N/A N/A
7,5 M - 8,4 N - 9,8 N - 11,5 L -
UP45-I R R7 R7 R7 R7
6,0 P - 6,7 M - 7,9 N - 9,5 N -
UP56 R7 R7 R7 R7
5,5 P - 6,5 M - 7,8 N -
UP68 R7 R7 R7

STEERING
WHEEL TURNS STEERING WHEEL FEELING HOSE TYPE
LOCK TO LOCK
L=LIGHT 3/8”= 5/16 HOSE AND FITTINGS OR KIT-OB/M
N=NORMAL
M=MEDIUM
H=HEAVY R7 = TUR7 FLEXIBLE HOSE AND FR7 FITTINGS
WARNING: These recommendations should be used as a general reference only. Final selection should be made with the
assistance of a qualified installation technician. For any further information please contact our Technical Service INBOARD STEERING SYSTEMS
