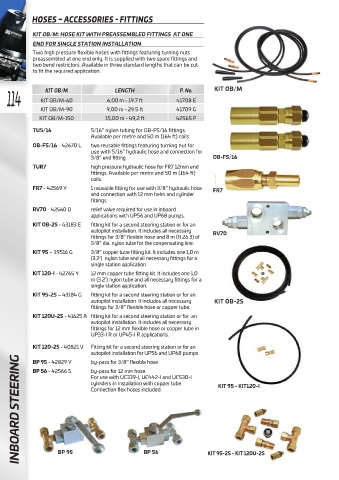

Page 116 - ULTRAFLEX Katalog 2021

HOSES – ACCESSORIES - FITTINGS

KIT OB/M: HOSE KIT WITH PREASSEMBLED FITTINGS AT ONE
END FOR SINGLE STATION INSTALLATION
Two high pressure flexible hoses with fittings featuring turning nuts
preassembled at one end only. It is supplied with two spare fittings and
two bend restrictors. Available in three standard lengths that can be cut
to fit the required application.

114 KIT OB/M-60 6,00 m - 19.7 ft 41708 E KIT OB/M
KIT OB/M
LENGTH
P. No.
KIT OB/M-90 9,00 m - 29.5 ft 41709 G
KIT OB/M-150 15,00 m - 49,2 ft 42565 P

TU5/16 5/16” nylon tubing for OB-F5/16 fittings.
Available per metre and 50 m (164 ft) coils.
OB-F5/16 - 42670 L two reusable fittings featuring turning nut for
use with 5/16” hydraulic hose and connection for
3/8” end fitting OB-F5/16
TUR7 high pressure hydraulic hose for FR7 12mm end
fittings. Available per metre and 50 m (164 ft)
coils.
FR7 - 42569 Y 1 reusable fitting for use with 3/8” hydraulic hose FR7
and connection with 12 mm helm and cylinder
fittings.
RV70 - 42560 D relief valve required for use in inboard
applications with UP56 and UP68 pumps.
KIT OB-2S - 43183 E fitting kit for a second steering station or for an
autopilot installation. It includes all necessary RV70
fittings for 3/8” flexible hose and 8 m (ft 26.3) of
3/8” dia. nylon tube for the conpensating line.
KIT 95 – 39516 G 3/8” copper tube fitting kit. It includes one 1,0 m
(3.2’) nylon tube and all necessary fittings for a
single station application.
KIT 120-I - 42765 Y 12 mm copper tube fitting kit. It includes one 1,0
m (3.2’) nylon tube and all necessary fittings for a
single station application.
KIT 95-2S – 43184 G fitting kit for a second steering station or for an
autopilot installation. It includes all necessary KIT OB-2S
fittings for 3/8” flexible hose or copper tube.
KIT 120U-2S - 41625 A fitting kit for a second steering station or for an
autopilot installation. It includes all necessary
fittings for 12 mm flexible hose or copper tube in
UP33-I R or UP45-I R applications.

KIT 120-2S - 40821 V Fitting kit for a second steering station or for an
autopilot installation for UP56 and UP68 pumps
INBOARD STEERING
BP 95 - 42829 Y by-pass for 3/8” flexible hose
BP 56 - 42566 S by-pass for 12 mm hose.
For use with UC339-I, UC442-I and UC530-I
cylinders in installation with copper tube. KIT 95 - KIT120-I
Connection flex hoses included.

BP 95 BP 56 KIT 95-2S - KIT 120U-2S
