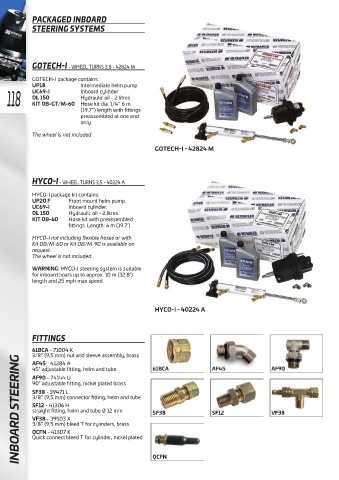

Page 120 - ULTRAFLEX Katalog 2021

PACKAGED INBOARD
STEERING SYSTEMS

GOTECH-I - WHEEL TURNS 3,8 - 42824 M
GOTECH-I package contains:
UP18
Intermediate helm pump
118 UC69-I Inboard cylinder
Hydraulic oil - 2 litres
OL 150
KIT OB-GT/M-60 Hose kit dia. 1/4” 6 m
(19.7”) length with fittings
preassembled at one end
only.

The wheel is not included

GOTECH-I - 42824 M

HYCO-I - WHEEL TURNS 3,5 - 40224 A

HYCO-I package kit contains:
UP20 F Front mount helm pump.
UC69-I Inboard cylinder.
OL 150 Hydraulic oil - 2 litres.
KIT OB-60 Hose kit with preassembled
fittings. Length: 6 m (19.7’)
HYCO-I not including flexible hoses or with
Kit OB/M-60 or Kit OB/M-90 is available on
request.
The wheel is not included.

WARNING: HYCO-I steering system is suitable
for inboard boats up to approx. 10 m (32.8’)
length and 25 mph max speed.

HYCO-I - 40224 A

FITTINGS

61BCA - 71004 K
3/8” (9,5 mm) nut and sleeve assembly, brass
INBOARD STEERING
AF45 - 41284 A
45° adjustable fitting, helm and tube. 61BCA AF45 AF90
AF90 - 74144 U
90° adjustable fitting, nickel plated brass
SF38 - 39471 L
3/8” (9,5 mm) connector fitting, helm and tube
SF12 - 41306 H
straight fitting, helm and tube Ø 12 mm SF38 SF12 VF38
VF38 - 39503 X
3/8” (9,5 mm) bleed T for cylinders, brass
QCFN - 41307 K
Quick connect bleed T for cylinder, nickel plated

QCFN
