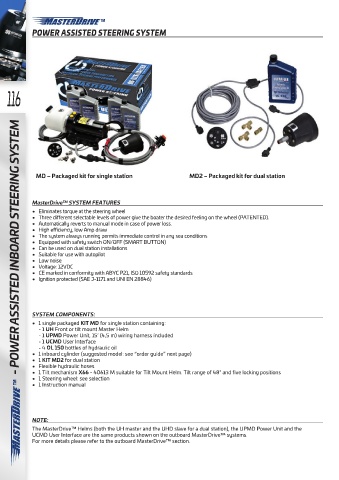

Page 118 - ULTRAFLEX Katalog 2021

TM
POWER ASSISTED STEERING SYSTEM

116

- POWER ASSISTED INBOARD STEERING SYSTEM

MD – Packaged kit for single station MD2 – Packaged kit for dual station

MasterDrive™ SYSTEM FEATURES
• Eliminates torque at the steering wheel
• Three different selectable levels of power give the boater the desired feeling on the wheel (PATENTED).
• Automatically reverts to manual mode in case of power loss.
• High efficiency, low Amp draw
• The system always running permits immediate control in any sea conditions
• Equipped with safety switch ON/OFF (SMART BUTTON)
• Can be used on dual station installations
• Suitable for use with autopilot
• Low noise
• Voltage: 12VDC
• CE marked in conformity with ABYC P21, ISO 10592 safety standards
• Ignition protected (SAE J-1171 and UNI EN 28846)

SYSTEM COMPONENTS:
• 1 single packaged KIT MD for single station containing:
- 1 UH Front or tilt mount Master Helm
- 1 UPMD Power Unit, 15’ (4,5 m) wiring harness included
- 1 UCMD User Interface
- 4 OL 150 bottles of hydraulic oil
• 1 inboard cylinder (suggested model: see “order guide” next page)
• 1 KIT MD2 for dual station
• Flexible hydraulic hoses.
• 1 Tilt mechanism X66 - 40613 M suitable for Tilt Mount Helm. Tilt range of 48° and five locking positions
• 1 Steering wheel: see selection
TM • 1 Instruction manual

NOTE:
The MasterDrive™ Helms (both the UH master and the UHD slave for a dual station), the UPMD Power Unit and the
UCMD User Interface are the same products shown on the outboard MasterDrive™ systems.
For more details please refer to the outboard MasterDrive™ section.
