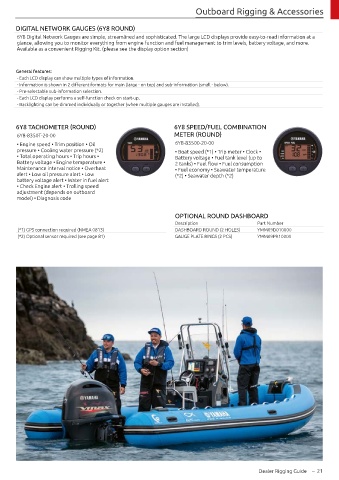

Page 23 - Yamaha Marine Zubehör 2021

Outboard Rigging & Accessories

DIGITAL NETWORK GAUGES (6Y8 ROUND)

6Y8 Digital Network Gauges are simple, streamlined and sophisticated. The large LCD displays provide easy-to-read information at a
glance, allowing you to monitor everything from engine function and fuel management to trim levels, battery voltage, and more.
Available as a convenient Rigging Kit. (please see the display option section)

General features:
- Each LCD display can show multiple types of information.
- Information is shown in 2 different formats for main (large - on top) and sub-information (small - below).
- Pre-selectable sub-information selection.
- Each LCD display performs a self-function check on start-up.
- Backlighting can be dimmed individually or together (when multiple gauges are installed).

6Y8 TACHOMETER (ROUND) 6Y8 SPEED/FUEL COMBINATION
6Y8-8350T-20-00 METER (ROUND)
• Engine speed • Trim position • Oil 6Y8-83500-20-00
pressure • Cooling water pressure (*2) • Boat speed (*1) • Trip meter • Clock •
• Total operating hours • Trip hours • Battery voltage • Fuel tank level (up to
Battery voltage • Engine temperature • 2 tanks) • Fuel flow • Fuel consumption
Maintenance interval notice • Overheat • Fuel economy • Seawater temperature
alert • Low oil pressure alert • Low (*2) • Seawater depth (*2)
battery voltage alert • Water in fuel alert
• Check Engine alert • Trolling speed
adjustment (depends on outboard
model) • Diagnosis code

OPTIONAL ROUND DASHBOARD
Description Part Number
(*1) GPS connection required (NMEA 0813) DASHBOARD ROUND (2 HOLES) YMM09D010000
(*2) Optional sensor required (see page 81) GAUGE PLATE RINGS (2 PCS) YMM09PR10000

Dealer Rigging Guide – 21
