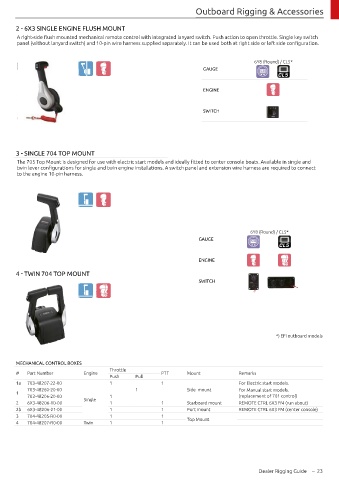

Outboard Rigging & Accessories

2 - 6X3 SINGLE ENGINE FLUSH MOUNT

A right-side flush mounted mechanical remote control with integrated lanyard switch. Push action to open throttle. Single key switch
panel (without lanyard switch) and 10-pin wire harness supplied separately. It can be used both at right side or left side configuration.

6Y8 (Round) / CL5*
GAUGE
CL5

ENGINE

SWITCH

3 - SINGLE 704 TOP MOUNT
The 705 Top Mount is designed for use with electric start models and ideally fitted to center console boats. Available in single and
twin lever configurations for single and twin engine installations. A switch panel and extension wire harness are required to connect
to the engine 10-pin harness.

6Y8 (Round) / CL5*
GAUGE
CL5

ENGINE
4 - TWIN 704 TOP MOUNT
SWITCH

*) EFI outboard models

MECHANICAL CONTROL BOXES
Throttle
# Part Number Engine PTT Mount Remarks
Push Pull
1a 703-48207-22-00 1 1 For Electric start models.
703-48260-20-00 1 Side mount For Manual start models.
1
703-48206-20-00 1 (replacement of 701 control)
Single
2 6X3-48206-10-00 1 1 Starboard mount REMOTE CTRL 6X3 FM (run about)
2b 6X3-48206-21-00 1 1 Port mount REMOTE CTRL 6X3 FM (center console)
3 704-48205-R0-00 1 1
Top Mount
4 704-48207-R0-00 Twin 1 1
