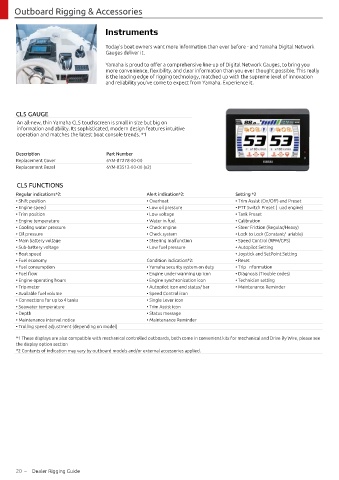

Outboard Rigging & Accessories

Instruments

Today's boat owners want more information than ever before - and Yamaha Digital Network
Gauges deliver it.

Yamaha is proud to offer a comprehensive line-up of Digital Network Gauges, to bring you
more convenience, flexibility, and clear information than you ever thought possible. This really
is the leading edge of rigging technology, matched up with the supreme level of innovation
and reliability you’ve come to expect from Yamaha. Experience it.

CL5 GAUGE
An all-new, thin Yamaha CL5 touchscreen is small in size but big on
information and ability. Its sophisticated, modern design features intuitive
operation and matches the latest boat console trends. *1

Description Part Number
Replacement Cover 6YM-87278-00-00
Replacement Bezel 6YM-83512-00-00 (x2)

CL5 FUNCTIONS
Regular indications*2: Alert indication*2: Setting *2
• Shift position • Overheat • Trim Assist (On/Off) and Preset
• Engine speed • Low oil pressure • PTT Switch Preset (฀uad engine)
• Trim position • Low voltage • Tank Preset
• Engine temperature • Water in fuel • Calibration
• Cooling water pressure • Check engine • Steer Friction (Regular/Heavy)
• Oil pressure • Check system • Lock to Lock (Constant/฀ariable)
• Main battery voltage • Steering malfunction • Speed Control (RPM/GPS)
• Sub-battery voltage • Low fuel pressure • Autopilot Setting
• Boat speed • Joystick and SetPoint Setting
• Fuel economy Condition indication*2: • Reset
• Fuel consumption • Yamaha security system on duty • Trip ฀nformation
• Fuel flow • Engine under warming up icon • Diagnosis (Trouble codes)
• Engine operating hours • Engine synchronization icon • Technician setting
• Trip meter • Autopilot icon and status/ bar • Maintenance Reminder
• Available fuel volume • Speed Control icon
• Connections for up to 4 tanks • Single Lever icon
• Seawater temperature • Trim Assist icon
• Depth • Status message
• Maintenance interval notice • Maintenance Reminder
• Trolling speed adjustment (depending on model)

*1 These displays are also compatible with mechanical controlled outboards, both come in convenient kits for mechanical and Drive By Wire, please see
the display option section
*2 Contents of indication may vary by outboard models and/or external accessories applied.
