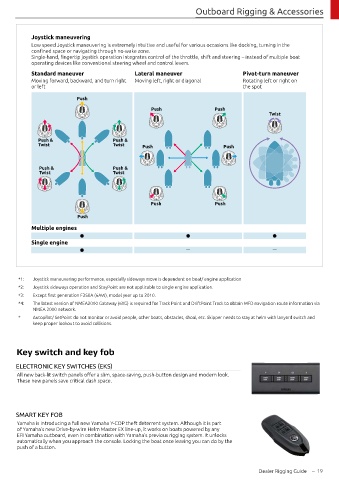

Page 21 - Yamaha Marine Zubehör 2021

Outboard Rigging & Accessories

Joystick maneuvering
Low speed Joystick maneuvering is extremely intuitive and useful for various occasions like docking, turning in the
confined space or navigating through no-wake zone.
Single-hand, fingertip joystick operation integrates control of the throttle, shift and steering – instead of multiple boat
operating devices like conventional steering wheel and control levers.

Standard maneuver Lateral maneuver Pivot-turn maneuver
Moving forward, backward, and turn right Moving left, right or diagonal Rotating left or right on
or left the spot

Push

Push Push
Twist

Push & Push &
Twist Twist Push Push

Push & Push &
Twist Twist

Push Push

Push
Multiple engines
˜ ˜ ˜
Single engine
˜ — —

*1: Joystick maneuvering performance, especially sideways move is dependent on boat/ engine application
*2: Joystick sideways operation and StayPoint are not applicable to single engine application.
*3: Except first generation F350A (6AW), model year up to 2010.
*4: The latest version of NMEA2000 Gateway (6YG) is required for Track Point and DriftPoint Track to obtain MFD navigation route information via
NMEA 2000 network.
* Autopilot/ SetPoint do not monitor or avoid people, other boats, obstacles, shoal, etc. Skipper needs to stay at helm with lanyard switch and
keep proper lookout to avoid collisions.

Key switch and key fob

ELECTRONIC KEY SWITCHES (EKS)
All new back-lit switch panels offer a slim, space-saving, push-button design and modern look.
These new panels save critical dash space.

SMART KEY FOB
Yamaha is introducing a full new Yamaha Y-COP theft deterrent system. Although it is part
of Yamaha’s new Drive-by-wire Helm Master EX line-up, it works on boats powered by any
EFI Yamaha outboard, even in combination with Yamaha’s previous rigging system. It unlocks
automatically when you approach the console. Locking the boat once leaving you can do by the
push of a button.

Dealer Rigging Guide – 19
