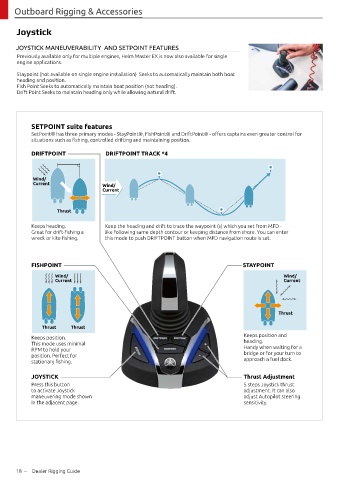

Outboard Rigging & Accessories

Joystick

JOYSTICK MANEUVERABILITY AND SETPOINT FEATURES
Previously available only for multiple engines, Helm Master EX is now also available for single
engine applications.

Staypoint (not available on single engine installation) Seeks to automatically maintain both boat
heading and position.
Fish Point Seeks to automatically maintain boat position (not heading).
Drift Point Seeks to maintain heading only while allowing natural drift.

SETPOINT suite features
SetPoint® has three primary modes - StayPoint®, FishPoint® and DriftPoint® - offers captains even greater control for
situations such as fishing, controlled drifting and maintaining position.

DRIFTPOINT DRIFTPOINT TRACK *4

Wind/
Current Wind/
Current

Thrust

Keeps heading. Keep the heading and drift to trace the waypoint (s) which you set from MFD -
Great for drift-fishing a like following same depth contour or keeping distance from shore. You can enter
wreck or kite fishing. this mode to push DRIFTPOINT button when MFD navigation route is set.

FISHPOINT STAYPOINT
Wind/ Wind/
Current Current

Thrust

Thrust Thrust
Keeps position and
Keeps position.
This mode uses minimal heading.
RPM to hold your Handy when waiting for a
position. Perfect for bridge or for your turn to
stationary fishing. approach a fuel dock.

JOYSTICK Thrust Adjustment
Press this button 5 steps Joystick thrust
to activate Joystick adjustment. It can also
maneuvering mode shown adjust Autopilot steering
in the adjacent page. sensitivity.

18 – Dealer Rigging Guide
