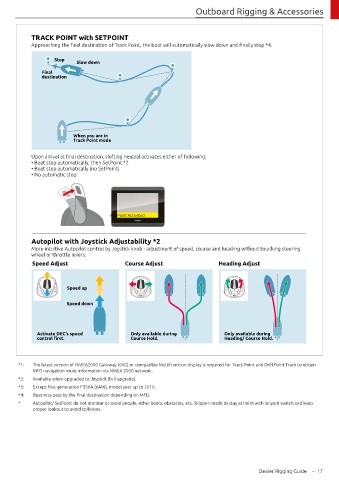

Page 19 - Yamaha Marine Zubehör 2021

Outboard Rigging & Accessories

TRACK POINT with SETPOINT
Approaching the final destination of Track Point, the boat will automatically slow down and finally stop *4.

Stop
Slow down
Final
destination

When you are in
Track Point mode

Upon arrival at final destination, shifting neutral activates either of following;
• Boat stop automatically, then SetPoint *2
• Boat stop automatically (no SetPoint)
• No automatic stop

FishPoint Activated

Autopilot with Joystick Adjustability *2

More intuitive Autopilot control by Joystick knob - adjustment of speed, course and heading without touching steering
wheel or throttle levers.
Speed Adjust Course Adjust Heading Adjust

Speed up

Speed down

Activate DEC’s speed Only available during Only available during
control first. Course Hold. Heading/ Course Hold.

*1: The latest version of NMEA2000 Gateway (6YG) or compatible Multifunction display is required for Track Point and DriftPoint Track to obtain
MFD navigation route information via NMEA 2000 network.
*2: Available when upgraded to Joystick (full upgrade).
*3: Except first generation F350A (6AW), model year up to 2010.
*4: Boat may pass by the final destination depending on MFD.
* Autopilot/ SetPoint do not monitor or avoid people, other boats, obstacles, etc. Skipper needs to stay at helm with lanyard switch and keep
proper lookout to avoid collisions.

Dealer Rigging Guide – 17
