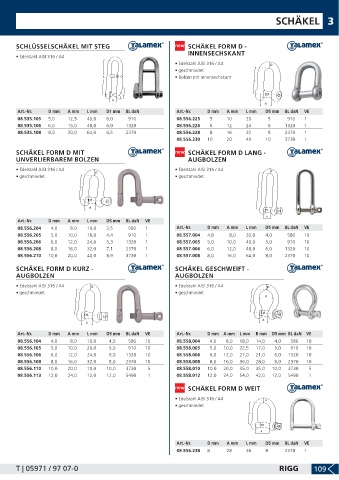

Page 111 - Lankhorst Katalog 2021/2022

SCHÄKEL 3

SCHLÜSSELSCHÄKEL MIT STEG SCHÄKEL FORM D -
INNENSECHSKANT
• Edelstahl AISI 316 / A4
• Edelstahl AISI 316 / A4 D
• geschmiedet
L D1 • Bolzen mit Innensechskant
L

D D5
A
A
Art.-Nr. D mm A mm L mm D1 mm BL daN Art.-Nr. D mm A mm L mm D5 mm BL daN VE
08.535.105 5,0 12,5 40,0 6,0 910 08.556.225 5 10 20 5 910 1
08.535.106 6,0 15,0 48,0 6,0 1320 08.556.226 6 12 24 6 1320 1
08.535.108 8,0 20,0 64,0 6,5 2370 08.556.228 8 16 32 8 2370 1
08.556.230 10 20 40 10 3730 1

SCHÄKEL FORM D MIT SCHÄKEL FORM D LANG -
UNVERLIERBAREM BOLZEN AUGBOLZEN

• Edelstahl AISI 316 / A4 • Edelstahl AISI 316 / A4 D
D
• geschmiedet • geschmiedet
L
L
D5
A
D5
A
Art.-Nr. D mm A mm L mm D5 mm BL daN VE
08.556.204 4,0 8,0 16,0 3,5 580 1 Art.-Nr. D mm A mm L mm D5 mm BL daN VE
08.556.205 5,0 10,0 16,0 4,4 910 1 08.557.004 4,8 8,0 32,0 4,0 580 10
08.556.206 6,0 12,0 24,0 5,3 1320 1 08.557.005 5,0 10,0 40,0 5,0 910 10
08.556.208 8,0 16,0 32,0 7,1 2370 1 08.557.006 6,0 12,0 48,0 6,0 1320 10
08.556.210 10,0 20,0 40,0 8,9 3730 1 08.557.008 8,0 16,0 64,0 8,0 2370 10
SCHÄKEL FORM D KURZ - SCHÄKEL GESCHWEIFT -
AUGBOLZEN AUGBOLZEN
• Edelstahl AISI 316 / A4 D • Edelstahl AISI 316 / A4 D
• geschmiedet • geschmiedet
R
L L
D5
D5
A
A
Art.-Nr. D mm A mm L mm D5 mm BL daN VE Art.-Nr. D mm A mm L mm R mm D5 mm BL daN VE
08.556.104 4,0 8,0 16,0 4,0 580 10 08.558.004 4,0 8,0 18,0 14,0 4,0 580 10
08.556.105 5,0 10,0 20,0 5,0 910 10 08.558.005 5,0 10,0 22,5 17,0 5,0 910 10
08.556.106 6,0 12,0 24,0 6,0 1320 10 08.558.006 6,0 12,0 27,0 21,0 6,0 1320 10
08.556.108 8,0 16,0 32,0 8,0 2370 10 08.558.008 8,0 16,0 36,0 28,0 8,0 2370 10
08.556.110 10,0 20,0 10,0 10,0 3730 5 08.558.010 10,0 20,0 45,0 35,0 10,0 3730 5
08.556.113 12,0 24,0 12,0 12,0 5490 1 08.558.012 12,0 24,0 54,0 42,0 12,0 5490 1

SCHÄKEL FORM D WEIT
• Edelstahl AISI 316 / A4
D
• geschmiedet
L

D5
A

Art.-Nr. D mm A mm L mm D5 mm BL daN VE
08.556.238 8 28 36 8 2370 1
