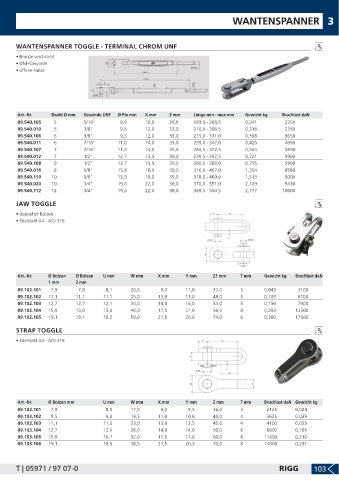

Page 105 - Lankhorst Katalog 2021/2022
P. 105
WANTENSPANNER 3
WANTENSPANNER TOGGLE - TERMINAL CHROM UNF
• Bronze verchromt
• UNF-Gewinde
• offene Hülse
Art.-Nr. Draht Ø mm Gewinde UNF Ø Pin mm X mm Z mm Länge min - max mm Gewicht kg Bruchlast daN
09.540.105 5 5/16" 8,0 10,5 28,5 183,5 - 268,5 0,241 2350
09.540.010 5 3/8" 9,5 12,0 33,0 210,5 - 306,5 0,316 2350
09.540.106 6 3/8" 9,5 12,0 33,0 215,0 - 311,0 0,398 3650
09.540.011 6 7/16" 11,0 14,0 35,0 239,0 - 347,0 0,426 4650
09.540.107 7 7/16" 11,0 14,0 35,0 264,5 - 372,5 0,544 4650
09.540.012 7 1/2" 12,7 15,5 39,0 239,5 - 347,5 0,721 5900
09.540.108 8 1/2" 12,7 15,5 39,0 260,0 - 368,0 0,755 5900
09.540.016 8 5/8" 15,9 18,0 39,0 316,0 - 467,0 1,354 8580
09.540.110 10 5/8" 15,9 18,0 39,0 318,0 - 469,0 1,513 9000
09.540.020 10 3/4" 19,0 22,0 38,0 370,0 - 551,0 2,109 9430
09.540.112 12 3/4" 19,0 22,0 38,0 369,5 - 550,5 2,177 10600
JAW TOGGLE
• doppelter Bolzen
• Edelstahl A4 - AISI 316
Art.-Nr. Ø Bolzen Ø Bolzen U mm W mm X mm Y mm Z1 mm T mm Gewicht kg Bruchlast daN
1 mm 2 mm
09.102.101 7,9 7,9 8,1 20,0 9,0 11,0 37,0 3 0,043 3100
09.102.102 11,1 11,1 11,1 25,0 13,0 13,0 48,0 5 0,109 6100
09.102.103 12,7 12,7 12,1 30,0 14,0 16,0 53,0 5 0,150 7900
09.102.104 15,9 15,9 15,0 40,0 17,5 21,0 56,0 6 0,293 13500
09.102.105 19,1 19,1 18,2 50,0 21,5 26,0 74,0 6 0,360 17500
STRAP TOGGLE
• Edelstahl A4 - AISI 316
Art.-Nr. Ø Bolzen mm U mm W mm X mm Y mm Z mm T mm Bruchlast daN Gewicht kg
09.103.101 7,9 8,0 17,0 9,0 9,5 36,0 3 2125 0,024
09.103.102 9,5 9,0 19,5 11,0 10,8 40,0 4 3625 0,039
09.103.103 11,1 11,0 23,0 13,0 12,5 45,0 4 4100 0,055
09.103.104 12,7 12,5 26,0 14,0 14,0 50,0 6 6800 0,105
09.103.105 15,9 16,7 32,0 17,5 17,0 60,0 8 11650 0,210
09.103.106 19,1 18,5 38,5 21,5 20,3 70,0 8 14000 0,291
