Rigging Order Guide

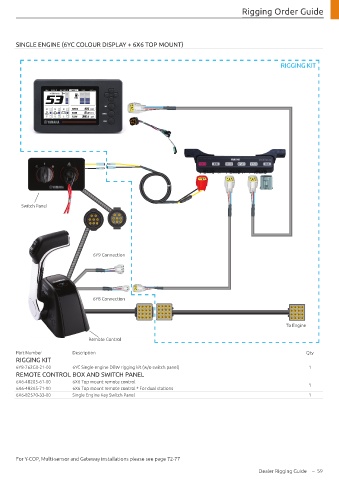

SINGLE ENGINE (6YC COLOUR DISPLAY + 6X6 TOP MOUNT)

RIGGING KIT

6Y8-8350T-01-00
6Y8-8356N-01-00 6Y8-81920-01-00

6Y8-83500-01-00

6Y8-85371-01-00
6X6-82570-31-00
Switch Panel
6Y8-83553-01-00
6X6-48205-34

6Y9 Connection

6Y8 Connection

To Engine

Remote Control

Part Number Description Qty
RIGGING KIT
6Y8-762G0-21-00 6YC Single engine DBW rigging kit (w/o switch panel) 1
REMOTE CONTROL BOX AND SWITCH PANEL
6X6-48205-61-00 6X6 Top mount remote control 1
6X6-48205-71-00 6X6 Top mount remote control * For dual stations
6X6-82570-33-00 Single Engine Key Switch Panel 1

For Y-COP, Multi-sensor and Gateway installations please see page 72-77
