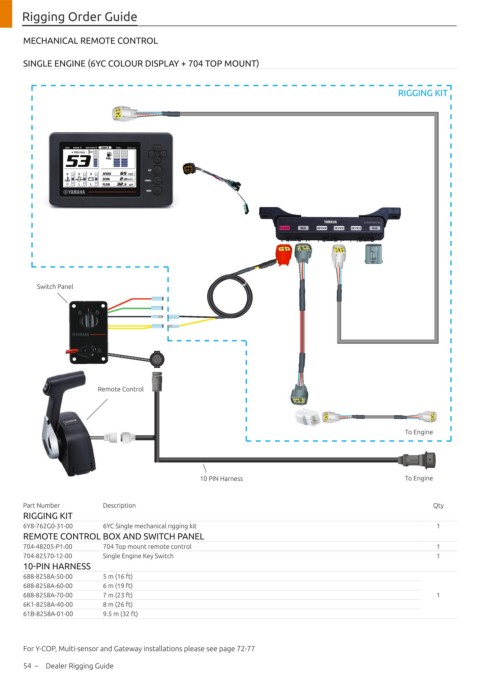

Rigging Order Guide
MECHANICAL REMOTE CONTROL
SINGLE ENGINE (6YC COLOUR DISPLAY + 704 TOP MOUNT)
RIGGING KIT
6Y8-8350T-11-00
6Y8-8356N-01-00
6Y8-81920-01-00
6Y8-83500-11-00
6Y8-83553-01-00
6Y8-85371-01-00
Switch Panel
704-82570-10-00
Remote Control
704-48205-P1-00
6Y8-81920-11-00 To Engine
10 PIN Harness To Engine
Part Number Description Qty
RIGGING KIT
6Y8-762G0-31-00 6YC Single mechanical rigging kit 1
REMOTE CONTROL BOX AND SWITCH PANEL
704-48205-P1-00 704 Top mount remote control 1
704-82570-12-00 Single Engine Key Switch 1
10-PIN HARNESS
688-8258A-50-00 5 m (16 ft)
688-8258A-60-00 6 m (19 ft)
688-8258A-70-00 7 m (23 ft) 1
6K1-8258A-40-00 8 m (26 ft)
61B-8258A-01-00 9.5 m (32 ft)
For Y-COP, Multi-sensor and Gateway installations please see page 72-77
