Rigging Order Guide

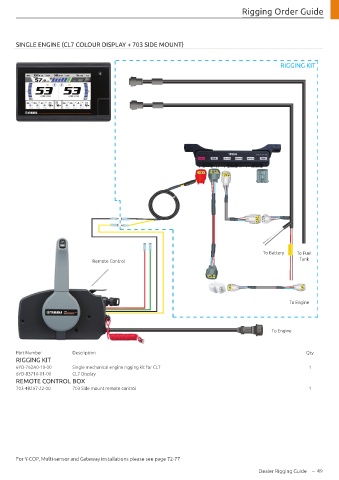

       SINGLE ENGINE (CL7 COLOUR DISPLAY + 703 SIDE MOUNT)



                                                                                                    RIGGING KIT







































                                                                                             To Battery  To Fuel
                                 Remote Control                                                           Tank







                                                                                                       To Engine




                                                                                                To Engine



       Part Number        Description                                                                        Qty
       RIGGING KIT
       6YD-762A0-10-00    Single mechanical engine rigging kit for CL7                                       1
       6YD-83710-01-00    CL7 Display
       REMOTE CONTROL BOX
       703-48207-22-00    703 Side mount remote control                                                      1














       For Y-COP, Multi-sensor and Gateway installations please see page 72-77

                                                                                            Dealer Rigging Guide  –  49
