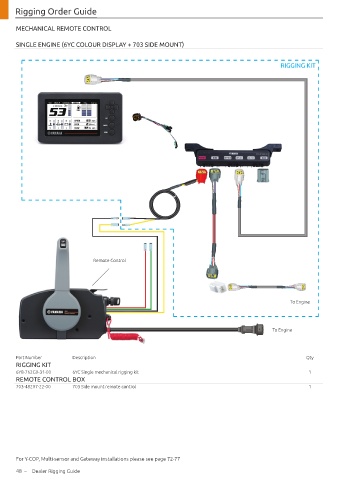

Rigging Order Guide


       MECHANICAL REMOTE CONTROL


       SINGLE ENGINE (6YC COLOUR DISPLAY + 703 SIDE MOUNT)



                                                                                                    RIGGING KIT








































                                  Remote Control








                                                                                                       To Engine




                                                                                                 To Engine




       Part Number        Description                                                                        Qty
       RIGGING KIT
       6Y8-762G0-31-00    6YC Single mechanical rigging kit                                                  1
       REMOTE CONTROL BOX
       703-48207-22-00    703 Side mount remote control                                                      1














       For Y-COP, Multi-sensor and Gateway installations please see page 72-77
       48  –   Dealer Rigging Guide
