Rigging Order Guide

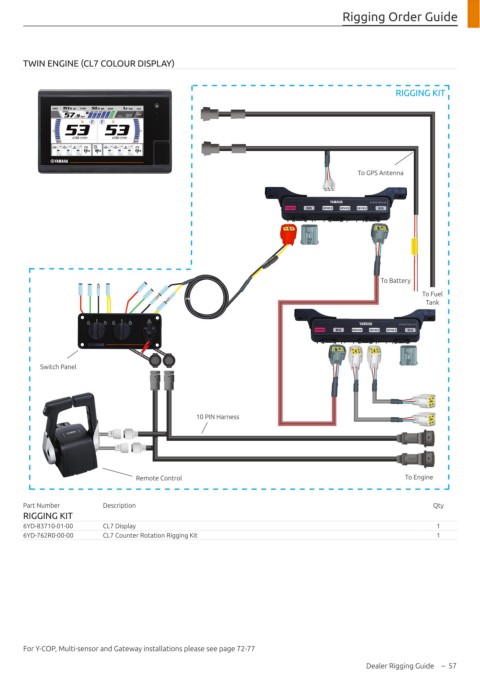

       TWIN ENGINE (CL7 COLOUR DISPLAY)



                                                                                                   RIGGING KIT









           6Y8-8350T-01-00
                                                                                          To GPS Antenna










                                                                                                  6Y8-8356N-01-00

           6Y8-83553-01-00
                                                                                                To Battery
                                                                                                          To Fuel
                                                                                                           Tank








           Switch Panel
           6Y8-82570-03-00
                         704-48205-P1-00




                                                  10 PIN Harness








                                   Remote Control                                                     To Engine


       Part Number        Description                                                                        Qty
       RIGGING KIT
       6YD-83710-01-00    CL7 Display                                                                        1
       6YD-762R0-00-00    CL7 Counter Rotation Rigging Kit                                                   1
















       For Y-COP, Multi-sensor and Gateway installations please see page 72-77
