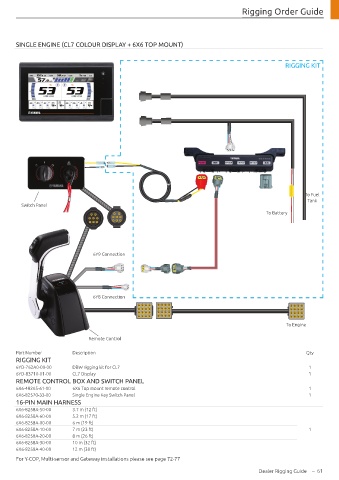

Rigging Order Guide

SINGLE ENGINE (CL7 COLOUR DISPLAY + 6X6 TOP MOUNT)

RIGGING KIT

6Y8-8350T-01-00
6Y8-8356N-01-00 6Y8-81920-01-00

6Y8-83500-01-00

To Fuel
6Y8-85371-01-00
6X6-82570-31-00 Tank
Switch Panel
6Y8-83553-01-00
To Battery
6X6-48205-34

6Y9 Connection

6Y8 Connection

To Engine

Remote Control

Part Number Description Qty
RIGGING KIT
6YD-762A0-00-00 DBW rigging kit for CL7 1
6YD-83710-01-00 CL7 Display 1
REMOTE CONTROL BOX AND SWITCH PANEL
6X6-48205-61-00 6X6 Top mount remote control 1
6X6-82570-33-00 Single Engine Key Switch Panel 1
16-PIN MAIN HARNESS
6X6-8258A-50-00 3.7 m (12 ft)
6X6-8258A-60-00 5.2 m (17 ft)
6X6-8258A-00-00 6 m (19 ft)
6X6-8258A-10-00 7 m (23 ft) 1
6X6-8258A-20-00 8 m (26 ft)
6X6-8258A-30-00 10 m (32 ft)
6X6-8258A-40-00 12 m (38 ft)
For Y-COP, Multi-sensor and Gateway installations please see page 72-77

Dealer Rigging Guide – 61
