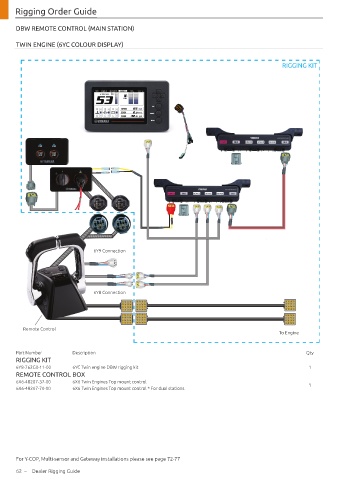

Rigging Order Guide

DBW REMOTE CONTROL (MAIN STATION)

TWIN ENGINE (6YC COLOUR DISPLAY)

RIGGING KIT

6Y8-8350T-01-00 6Y8-83500-01-00 6Y8-8350S-01-00

6X6-82570-60-00

6X6-82570-40-00

6Y8-81920-01-00

6X6-48207-34

6Y8-83553-01-00

6Y9 Connection

6Y8 Connection

Remote Control
To Engine

Part Number Description Qty
RIGGING KIT
6Y8-762G0-11-00 6YC Twin engine DBW rigging kit 1
REMOTE CONTROL BOX
6X6-48207-37-00 6X6 Twin Engines Top mount control 1
6X6-48207-70-00 6X6 Twin Engines Top mount control * For dual stations

For Y-COP, Multi-sensor and Gateway installations please see page 72-77
