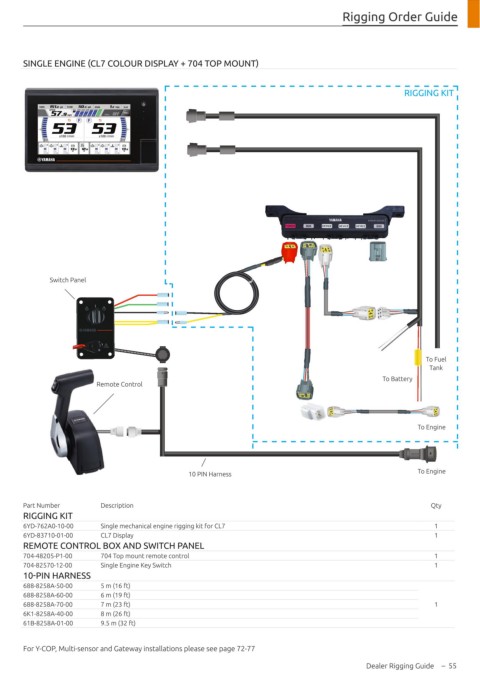

Rigging Order Guide






       SINGLE ENGINE (CL7 COLOUR DISPLAY + 704 TOP MOUNT)



                                                                                                     RIGGING KIT



























             Switch Panel










                                                                                                           To Fuel
                                                                                                            Tank
                                                                                                To Battery
                         Remote Control





                                                                                                         To Engine





                                                10 PIN Harness                                           To Engine



       Part Number        Description                                                                       Qty
       RIGGING KIT
       6YD-762A0-10-00    Single mechanical engine rigging kit for CL7                                       1
       6YD-83710-01-00    CL7 Display                                                                        1
       REMOTE CONTROL BOX AND SWITCH PANEL
       704-48205-P1-00    704 Top mount remote control                                                       1
       704-82570-12-00    Single Engine Key Switch                                                           1
       10-PIN HARNESS
       688-8258A-50-00    5 m (16 ft)
       688-8258A-60-00    6 m (19 ft)
       688-8258A-70-00    7 m (23 ft)                                                                        1
       6K1-8258A-40-00    8 m (26 ft)
       61B-8258A-01-00    9.5 m (32 ft)


       For Y-COP, Multi-sensor and Gateway installations please see page 72-77

                                                                                            Dealer Rigging Guide  –  55
