Rigging Order Guide

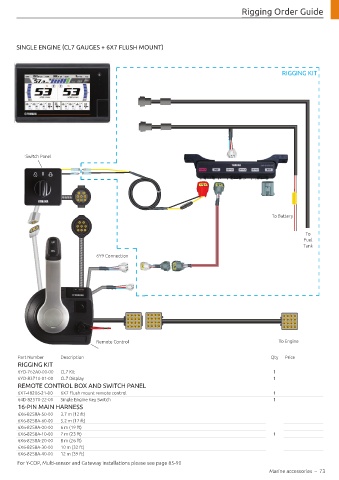

SINGLE ENGINE (CL7 GAUGES + 6X7 FLUSH MOUNT)

RIGGING KIT

6Y8-8350T-01-00
6Y8-81920-01-00
64D-82570-21-00
Switch Panel
6Y8-83500-01-00

6Y8-85371-01-00
6Y8-83553-01-00 To Battery

To
Fuel
Tank

6Y9 Connection

Remote Control To Engine
6X7-48206-10-00

Part Number Description Qty Price
RIGGING KIT
6YD-762A0-00-00 CL7 Kit 1
6YD-83710-01-00 CL7 Display 1
REMOTE CONTROL BOX AND SWITCH PANEL
6X7-48206-21-00 6X7 Flush mount remote control 1
64D-82570-22-00 Single Engine Key Switch 1
16-PIN MAIN HARNESS
6X6-8258A-50-00 3.7 m (12 ft)
6X6-8258A-60-00 5.2 m (17 ft)
6X6-8258A-00-00 6 m (19 ft)
6X6-8258A-10-00 7 m (23 ft) 1
6X6-8258A-20-00 8 m (26 ft)
6X6-8258A-30-00 10 m (32 ft)
6X6-8258A-40-00 12 m (39 ft)
For Y-COP, Multi-sensor and Gateway installations please see page 85-90
