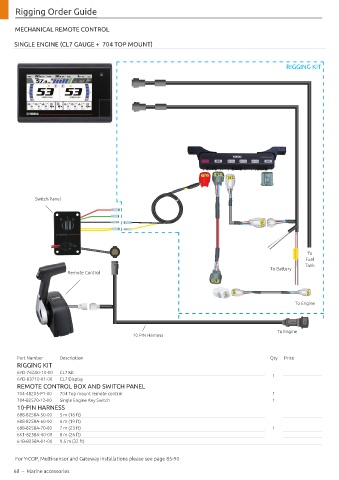

Rigging Order Guide

MECHANICAL REMOTE CONTROL

SINGLE ENGINE (CL7 GAUGE + 704 TOP MOUNT)

RIGGING KIT

Switch Panel

To
Fuel
Tank
To Battery
Remote Control

To Engine

To Engine
10 PIN Harness

Part Number Description Qty Price
RIGGING KIT
6YD-762A0-10-00 CL7 Kit 1
6YD-83710-01-00 CL7 Display
REMOTE CONTROL BOX AND SWITCH PANEL
704-48205-P1-00 704 Top mount remote control 1
704-82570-12-00 Single Engine Key Switch 1
10-PIN HARNESS
688-8258A-50-00 5 m (16 ft)
688-8258A-60-00 6 m (19 ft)
688-8258A-70-00 7 m (23 ft) 1
6K1-8258A-40-00 8 m (26 ft)
61B-8258A-01-00 9.5 m (32 ft)

For Y-COP, Multi-sensor and Gateway installations please see page 85-90
