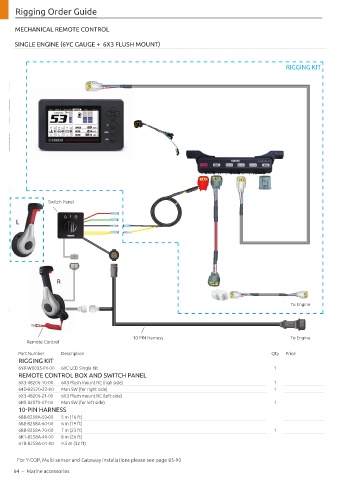

Rigging Order Guide

MECHANICAL REMOTE CONTROL

SINGLE ENGINE (6YC GAUGE + 6X3 FLUSH MOUNT)

RIGGING KIT

Switch Panel

L

R

To Engine

10 PIN Harness To Engine
Remote Control

Part Number Description Qty Price
RIGGING KIT
6Y8-W0035-F1-00 6YC LCD Single Kit 1
REMOTE CONTROL BOX AND SWITCH PANEL
6X3-48206-10-00 6X3 Flush mount RC (righ side) 1
64D-82570-22-00 Man SW (for right side) 1
6X3-48206-21-00 6X3 Flush mount RC (left side)
6R5-82570-07-00 Man SW (for left side) 1
10-PIN HARNESS
688-8258A-50-00 5 m (16 ft)
688-8258A-60-00 6 m (19 ft)
688-8258A-70-00 7 m (23 ft) 1
6K1-8258A-40-00 8 m (26 ft)
61B-8258A-01-00 9.5 m (32 ft)

For Y-COP, Multi-sensor and Gateway installations please see page 85-90
