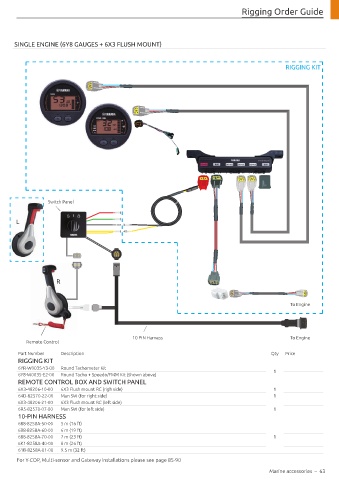

Rigging Order Guide
MECHANICAL REMOTE CONTROL
SINGLE ENGINE (6Y8 GAUGES + 6X3 FLUSH MOUNT)
RIGGING KIT
Switch Panel
L
R
To Engine
10 PIN Harness To Engine
Remote Control
Part Number Description Qty Price
RIGGING KIT
6YR-W0035-Y3-00 Round Tachometer Kit 1
6Y8-W0035-E2-00 Round Tacho + Speedo/FMM Kit (Shown above)
REMOTE CONTROL BOX AND SWITCH PANEL
6X3-48206-10-00 6X3 Flush mount RC (righ side) 1
64D-82570-22-00 Man SW (for right side) 1
6X3-48206-21-00 6X3 Flush mount RC (left side)
6R5-82570-07-00 Man SW (for left side) 1
10-PIN HARNESS
688-8258A-50-00 5 m (16 ft)
688-8258A-60-00 6 m (19 ft)
688-8258A-70-00 7 m (23 ft) 1
6K1-8258A-40-00 8 m (26 ft)
61B-8258A-01-00 9.5 m (32 ft)
For Y-COP, Multi-sensor and Gateway installations please see page 85-90
