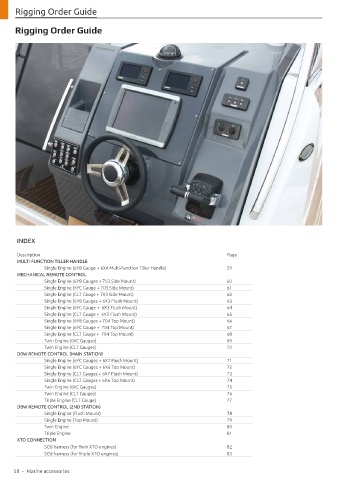

Page 60 - Yamaha Marine Marine Zubehör 2019

Rigging Order Guide

Rigging Order Guide

INDEX

Description Page
MULTI-FUNCTION TILLER HANDLE
Single Engine (6Y8 Gauge + 6X4 Multi-function Tiller Handle) 59
MECHANICAL REMOTE CONTROL
Single Engine (6Y8 Gauges + 703 Side Mount) 60
Single Engine (6YC Gauge + 703 Side Mount) 61
Single Engine (CL7 Gauge + 703 Side Mount) 62
Single Engine (6Y8 Gauges + 6X3 Flush Mount) 63
Single Engine (6YC Gauge + 6X3 Flush Mount) 64
Single Engine (CL7 Gauge + 6X3 Flush Mount) 65
Single Engine (6Y8 Gauges + 704 Top Mount) 66
Single Engine (6YC Gauge + 704 Top Mount) 67
Single Engine (CL7 Gauge + 704 Top Mount) 68
Twin Engine (6YC Gauges) 69
Twin Engine (CL7 Gauges) 70
DBW REMOTE CONTROL (MAIN STATION)
Single Engine (6YC Gauges + 6X7 Flush Mount) 71
Single Engine (6YC Gauges + 6X6 Top Mount) 72
Single Engine (CL7 Gauges + 6X7 Flush Mount) 73
Single Engine (CL7 Gauges + 6X6 Top Mount) 74
Twin Engine (6YC Gauges) 75
Twin Engine (CL7 Gauges) 76
Triple Engine (CL7 Gauge) 77
DBW REMOTE CONTROL (2ND STATION)
Single Engine (Flush Mount) 78
Single Engine (Top Mount) 79
Twin Engine 80
Triple Engine 81
XTO CONNECTION
SCU harness (for Twin XTO engines) 82
SCU harness (for Triple XTO engines) 83
